Product Summary

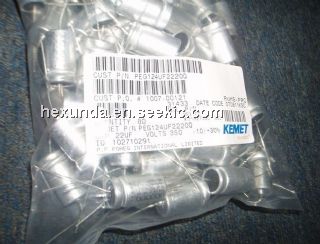

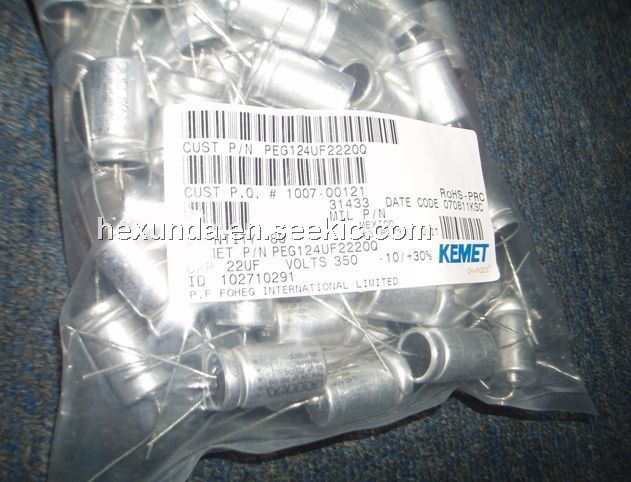

Aluminum Electrolytic Capacitors - Leaded 22uF 350VDC -10% to 30%

Parametrics

standards:IEC 60384-4 Long Life Grade 40/125/56, DIN 41240, type 1A and 1B,DIN 40040 GKF, IEC 60384-4 Long Life Grade 40/105/56,DIN 41240, type 1A and 1B, DIN 40040 GMF,
CeCC: CECC 30301-053 (10–450 VDC)
Capacitance :range  1–4700μF
Capacitance: tolerance  –10 to +30%
rated voltage : 10–450 VDC
temperature range :–40 to +125°C
operational life time :27500 h at 105°C (case ? = 20 mm)
shelf life : 5000 h at 0V +105°C or 10 years at 0V +40°C  +40°C 10 years
diameter range : 10 – 20 mm



Features

? 125°C and 105°C
?  long life > 30 years at 50°C
?  low esr
? low es

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PEG124UF2220QL1
PEG124UF2220QL1
Kemet
Aluminum Electrolytic Capacitors - Leaded 22uF 350VDC -10% to 30%
Data Sheet
0-560: $2.25
560-1000: $2.12
1000-2000: $2.00
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PEG124EF4100QL1
PEG124EF4100QL1
Kemet
Aluminum Electrolytic Capacitors - Leaded 1000uF 10VDC -10% to 30%
Data Sheet
0-565: $1.94
565-1000: $1.84
1000-2000: $1.73
PEG124GA2680QL1
PEG124GA2680QL1
Kemet
Aluminum Electrolytic Capacitors - Leaded 68uF 16VDC -10% to 30%
Data Sheet
0-565: $1.51
565-1000: $1.43
1000-2000: $1.34
2000-5000: $1.26
PEG124GJ447AQL1
PEG124GJ447AQL1
Kemet
Aluminum Electrolytic Capacitors - Leaded 4700uF 16VDC -10% to 30%
Data Sheet
0-557: $3.10
557-1000: $2.93
1000-2000: $2.75
PEG124HA2470QT1
PEG124HA2470QT1
Kemet
Aluminum Electrolytic Capacitors - Leaded 47uF 25VDC -10% to 30%
Data Sheet
0-500: $1.60
500-565: $1.60
565-1000: $1.51
1000-2000: $1.42
PEG124HG415AQL1
PEG124HG415AQL1
Kemet
Aluminum Electrolytic Capacitors - Leaded 1500uF 25VDC -10% to 30%
Data Sheet
0-565: $2.17
565-1000: $2.06
1000-2000: $1.93
PEG124KA311DQL1
PEG124KA311DQL1
Kemet
Aluminum Electrolytic Capacitors - Leaded 40volts 110uF AXIAL 10x20mm
Data Sheet
0-400: $1.61
400-500: $1.29
500-1000: $1.15
1000-2000: $1.09
