Product Summary

GENERAL DESCRIPTION:The AVX TransGuard? Transient Voltage Suppressors (TVS) with unique high-energy multilayer construction represents state-of-the-art overvoltage circuit protection. Monolithic multilayer construction provides protection from voltage transients caused by ESD, lightning, NEMP, inductive switching, etc. True surface mount product is provided in EIA industry standard packages. Thru-hole components are supplied as conformally coated axial devices.

Parametrics

Surface Mount DeviceS CLAMPING VOLTAGE:
Where: 100 = 12V 500 = 50V
150 = 18V 560 = 60V
200 = 22V 580 = 60V
250 = 27V 620 = 67V
300 = 32V 650 = 67V
390 = 42V 101 = 100V
400 = 42V 121 = 120V
WORKING VOLTAGE:
Where: 03 = 3.3 VDC 18 = 18.0 VDC
05 = 5.6 VDC 26 = 26.0 VDC
09 = 9.0 VDC 30 = 30.0 VDC
12 = 12.0 VDC 48 = 48.0 VDC
14 = 14.0 VDC 60 = 60.0 VDC
85 = 85.0 VDC

Features

VOLTAGE/CURRENT CHARACTERISTICS:Multilayer construction and improved grain structure result in excellent transient clamping characteristics up to 20 amps peak current, while maintaining very low leakage currents under DC operating conditions. The VI curves below show the voltage/current characteristics for the 5.6V, 9V, 14V, 18V and low capacitance StaticGuard parts with currents ranging from parts of a micro amp to tens of amps.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

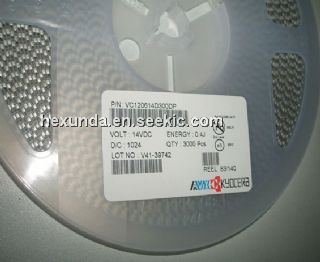

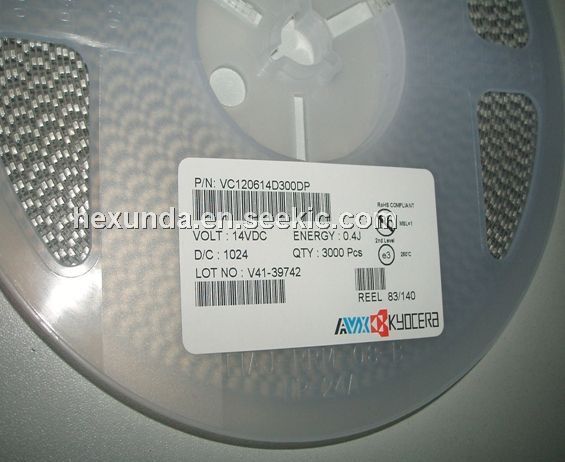

VC120614D300DP
VC120614D300DP
AVX
Varistors 14V 0.4J Energy 1206
Data Sheet
0-1: $0.42
1-100: $0.29
100-500: $0.24
500-1000: $0.16
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VC12
VC12
Meterman
Clamp Multimeters & Accessories VINYL CASE DM2
Data Sheet
Negotiable
VC120603A100D
VC120603A100D
AVX
Varistors 3.3volts 0.1JOULES
Data Sheet
0-1: $0.23
1-50: $0.23
50-100: $0.21
100-500: $0.19
500-1000: $0.13
VC120603A100DP
VC120603A100DP
AVX
Varistors 3.3V 0.1J Energy
Data Sheet
0-1: $0.22
1-100: $0.19
100-500: $0.18
500-1000: $0.12
VC120603A100R
VC120603A100R
AVX
Varistors 3.3volts 0.1JOULES
Data Sheet
0-3200: $0.12
3200-4000: $0.12
4000-5000: $0.12
VC120603A100RP
VC120603A100RP
AVX
Varistors 3.3v .1 Joules
Data Sheet
0-3150: $0.12
3150-4000: $0.12
4000-8000: $0.12
VC120603A100TP
VC120603A100TP
AVX
Varistors 3.3volts 0.1JOULES
Data Sheet
0-4350: $0.22
4350-5000: $0.21
5000-10000: $0.18
10000-25000: $0.17
