Product Summary

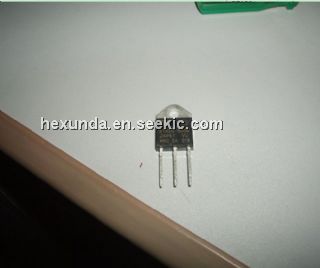

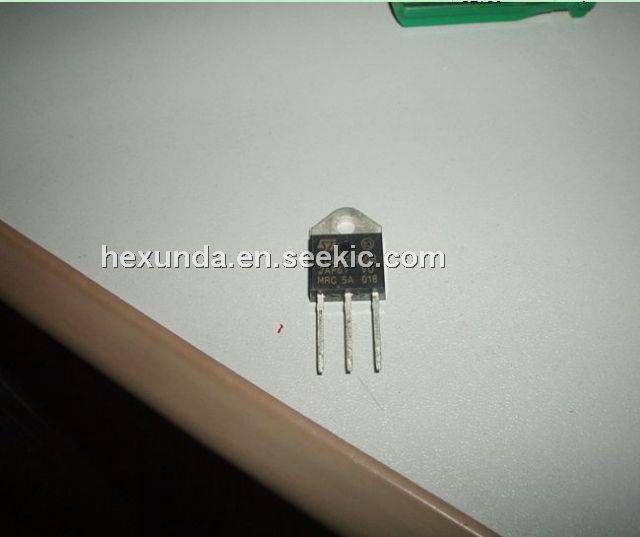

Description:Available either in through-hole or surface-mount packages, the BTA24, BTB24, BTA25, BTA26, BTB26 and T25 triac series is suitable for general purpose mains power AC switching.
Parametrics
Absolute maximum ratings:
IT(RMS) RMS on-state current (full sine wave) TOP3 Tc= 105° C :25 A
IT(RMS) RMS on-state current (full sine wave) D2PAK /TO-220AB Tc= 100° C:25 A
IT(RMS) RMS on-state current (full sine wave) RD91 Ins/TOP3 Ins.Tc = 100° C:25 A
IT(RMS) RMS on-state current (full sine wave) TO-220AB Ins. Tc = 75° C:25 A
ITSM Non repetitive surge peak on-state current (full cycle, Tj initial = 25° C)F = 50 Hz t = 20 ms :250 A
ITSM Non repetitive surge peak on-state current (full cycle, Tj initial = 25° C)F = 60 Hz t = 16.7 ms 260 A
I2t I2t Value for fusing tp = 10 ms 340 A2s
dI/dt Critical rate of rise of on-state current IG = 2 x IGT , tr≤ 100 ns F = 120 Hz Tj = 125° C 50 A/μs
VDSM/VRSM Non repetitive surge peak off-state voltage tp = 10 ms Tj = 25° C VDRM/VRRM+ 100V
IGM Peak gate current tp = 20 μs Tj = 125° C 4 A
PG(AV) Average gate power dissipation Tj = 125° C 1 W
Tstg Storage junction temperature range - 40 to + 150° C
Tj Operating junction temperature range - 40 to + 125° C
Features
Features as below :
(1) High current triac;
(2) Low thermal resistance with clip bonding;
(3) High commutation (4 quadrant) or very high commutation (3 quadrant) capability;
(4) BTA series UL1557 certified (File ref: 81734);
(5) Packages are RoHS (2002/95/EC) compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BTA26-600BRG |
STMicroelectronics |
Triacs 25 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
