Product Summary
Description:The FM75 contains a high-precision CMOS temperature sensor, a Delta-Sigma analog-to-digital converter, and a
SMBus-compatible serial digital interface. Typical accuracy is ±2°C over the full temperature range of 40°C to 125°C and to ±1°C over the range of 0°C to 100°C, with
9- to 12-bit resolution (default is 9).
Thermal alarm output, over-limit signal (OS) supports interrupt and comparator modes. OS is active if the userprogrammable trip-temperature is exceeded. When the
temperature falls below the trip temperature, plus the user-programmable hysteresis limit, the OS is disabled.

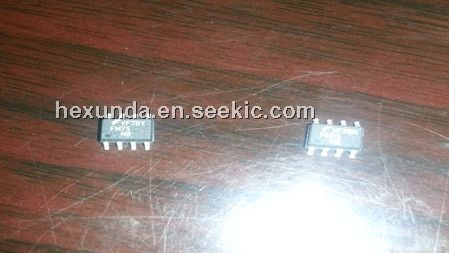

Available in a surface mount SOIC-8 (SOP-8) package
Parametrics
Absolute Maximum Ratings:
Supply Voltage :+7 V
Output Voltage :VCC + 0.5 V
Output Current: 10 mA
Storage Temperature Range : -60 +150 °C
Lead Soldering Temperature : 220 °C
ESD(1) Human Body Model: 2000V
ESD(1) Machine Model:250V
Features
Features
(1) User Configurable to 9, 10, 11 or 12-bit Resolution;
(2) Precision Calibrated to ±1°C, 0°C to 100°C Typical;
(3) Temperature Range: -40°C to 125°C;
(4) Low Operating Current (less than 250μA);
(5) Low Self Heating (0.2°C max. in still air);
(6) Operating Voltage Range: 2.7V to 5.5V
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM75M8X |
Fairchild Semiconductor |
Board Mount Temperature Sensors Low Voltage Digital I2C comp Temp Sensor |
Data Sheet |
Negotiable |
|
||||
|
FM75M8 |
Fairchild Semiconductor |
Board Mount Temperature Sensors Low Voltage Digital I2C comp Temp Sensor |
Data Sheet |
Negotiable |
|
||||
