Product Summary
Description:The IR2101/IR21014/IR2102/IR21024 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The
logic input is compatible with standard CMOS or LSTTLoutput. The output drivers feature a high pulse current
buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an Nchannel power MOSFET or IGBT in the high side configuration which operates up to 600 volts
Parametrics
Absolute Maximum Ratings:
VB High side floating supply voltage -0.3 ~ 625V
VS High side floating supply offset voltage VB - 25 ~ VB + 0.3V
VHO High side floating output voltage VS - 0.3 ~ VB + 0.3V
VCC Low side and logic fixed supply voltage -0.3 ~ 25V
VLO Low side output voltage -0.3 ~ VCC + 0.3V
VIN Logic input voltage (HIN & LIN) -0.3 ~ VCC + 0.3V
dVS/dt Allowable offset supply voltage transient — 50 V/ns
Features
Features
(1) Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune;
(2) Gate drive supply range from 10 to 20V;
(3) Undervoltage lockout;
(4) 5V Schmitt-triggered input logic;
(5) Matched propagation delay for both channels;
(6) Outputs in phase with inputs (IR2101/IR21014) or out of phase with inputs (IR2102/IR21024）
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

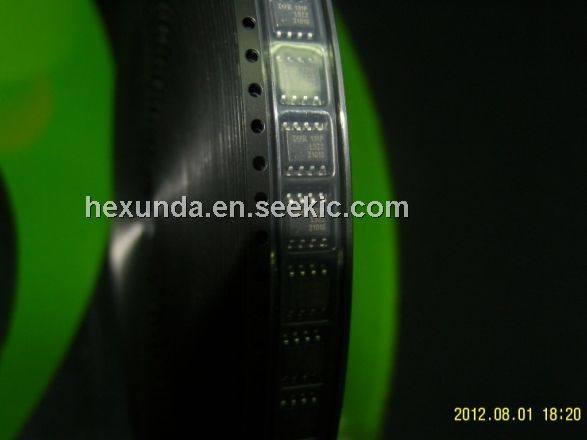

 IR2102S |
|
IC DRIVER HIGH/LOW SIDE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
 |
IR2102SPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
||||||||||||
|
IR2102STRPBF |
International Rectifier |
Power Driver ICs |
Data Sheet |
|
|
||||||||||||
|
IR2102STR |
|
IC DRIVER HIGH/LOW SIDE 8-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
