Product Summary
Description:Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area.
This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer
with an extremely efficient device for use in a wide variety of applications. The SO-8 has been modified through a customized
leadframe for enhanced thermal characteristics and multiple-die capability making it ideal in a variety of power applications. With these improvements,
multiple devices can be used in an application with dramatically reduced board space. The package is designed for vapor phase, infra red, or wave soldering
techniques. Power dissipation of greater than 0.8W
is possible in a typical PCB mount application
Parametrics
Absolute Maximum Ratings:
ID @ TA = 25°C 10 Sec. Pulsed Drain Current, VGS @ 10V: 5.3A
ID @ TA = 25°C Continuous Drain Current, VGS @ 10V: 4.9A
ID @ TA = 70°C Continuous Drain Current, VGS @ 10V :3.9A
IDM Pulsed Drain Current : 20A
PD @TA = 25°C Power Dissipation :2.0 W
Linear Derating Factor :0.016 W/°C
VGS Gate-to-Source Voltage: ± 20 V
dv/dt Peak Diode Recovery dv/dt : 5.0 V / n s
TJ, TSTG Junction and Storage Temperature Range :-55 to + 150 °C
Features
Feature :
(1) Generation V Technology;
(2) Ultra Low On-Resistance;
(3) Dual N-Channel Mosfet;
(4) Surface Mount;
(5) Available in Tape & Reel;
(6) Dynamic dv/dt Rating;
(7) Fast Switching
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

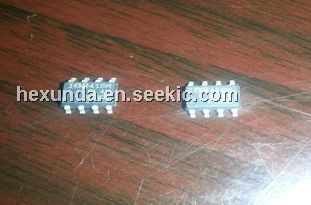

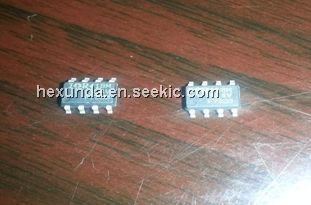

 IRF7303TR |
International Rectifier |
MOSFET 2N-CH 30V 4.9A 8-SOIC |
Data Sheet |
|
|
||||||||||||
 |
IRF7303TRPBF |
International Rectifier |
MOSFET MOSFT DUAL NCh 30V 4.9A |
Data Sheet |
|
|
||||||||||||
