Product Summary
General Description:The LM4752 is a stereo audio amplifier capable of delivering 11W per channel of continuous average output power to a
4Ω load, or 7W per channel into 8Ω using a single 24V supply at 10% THD+N. The LM4752 is specifically designed for single supply operation and a low external component count. The gain and bias
resistors are integrated on chip, resulting in a 11W stereo amplifier in a compact 7 pin TO220 package. High output power levels at both 20V and 24V supplies and low external
component count offer high value for compact stereo and TV applications. A simple mute function can be implemented
with the addition of a few external components
Parametrics
Absolute Maximum Ratings (Note 2)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage 40V
Input Voltage ±0.7V
Output Current Internally Limited
Power Dissipation (Note 3) 62.5W
ESD Susceptability (Note 4) 2 kV
Junction Temperature 150℃
Soldering Information
T Package (10 sec) 250℃
Storage Temperature -40℃ to 150℃
Features
Features
(1) Drives 4Ω and 8Ω loads;
(2) Internal gain resistors (AV = 34 dB);
(3) Minimum external component requirement;
(4) Single supply operation;
(5) Internal current limiting;
(6) Internal thermal protection;

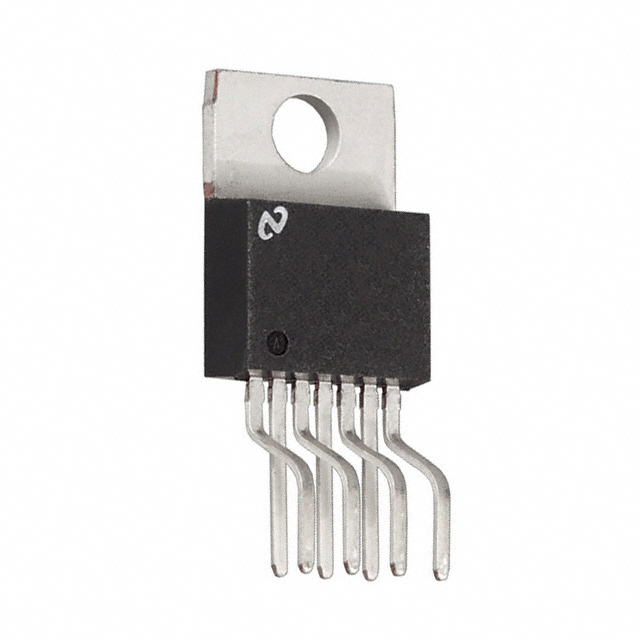

(7) Compact 7 lead TO-220 package;
(8) Low cost-per-watt
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4752T/NOPB |
|
IC AMP AUDIO PWR 11W AB TO220-7 |
Data Sheet |
Negotiable |
|
||||||||||||
 |
LM4752TS |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
 |
LM4752TS/NOPB |
National Semiconductor (TI) |
Audio Amplifiers STEREO 11W AUDIO PWR AMP |
Data Sheet |
|
|
||||||||||||
