Product Summary
Mechanical Data
Cases: ITO-220AB molded plastic body
Terminals: Pure tin plated, lead free. solderable per MIL-STD-750, Method 2026
Polarity: As marked
Mounting position: Any
Mounting torque: 5 in. - lbs. max
Weight: 0.08 ounce, 2.24 grams
Parametrics
Maximum Ratings and Electrical Characteristics:
Maximum Average Forward Rectified Current at TC=135℃ I(AV) Total device ：30 A
Maximum Average Forward Rectified Per Leg I(AV)：15 A
Peak Repetitive Forward Current Per leg (Rated VR, Square Wave, 20KHz) at Tc=135℃ IFRM ：30 A
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method ) IFSM ：200 A
Peak Repetitive Reverse Surge Current (Note 1) IRRM 1.0 0.5A
Features
Features
Plastic material used carries Underwriters Laboratory Classifications 94V-0
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High current capability, low forward voltage drop
High surge capability
For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
Guardring for overvoltage protection
High temperature soldering guaranteed: 260℃/10 seconds,0.25”(6.35mm)from case
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

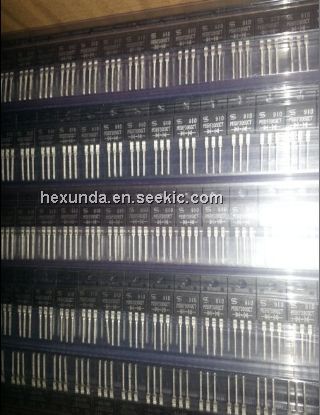

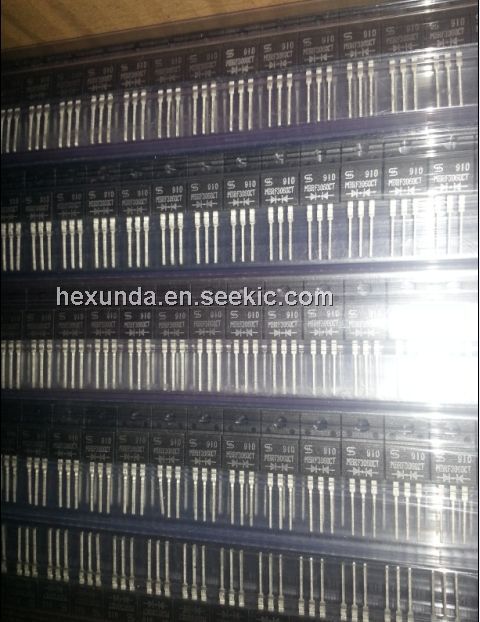

 MBRF3060CT |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 30A,60V,DUAL SCHOTTKY Rect,Iso |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
MBRF10100 |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 10 Amp 100 Volt Single |
Data Sheet |
|
|
||||||||||||
|
MBRF10100CT |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 10 Amp 100 Volt Dual |
Data Sheet |
|
|
||||||||||||
 |
MBRF10100CT-E3/45 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 100 Volt 10A Single TrenchMOS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MBRF10100-E3/4W |
Vishay |
Schottky (Diodes & Rectifiers) 10 Amp 100 Volt 150 Amp IFSM |
Data Sheet |
|
|
||||||||||||
|
MBRF10150 |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 10 Amp 150 Volt Single |
Data Sheet |
|
|
||||||||||||
|
MBRF10150CT |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 10 Amp 150 Volt Dual |
Data Sheet |
|
|
||||||||||||
