Product Summary

The MC68HC908AP64A is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCUs). All MCUs in the family use the enhanced M68HC08 central processor unit(CPU08) and are available with a variety of modules, memory sizes and types, and package types.

Parametrics

Device RAM Size(bytes)FLASH Memory Size(bytes)
MC68HC908AP64A 2,048 62,368
MC68HC908AP32A 2,048 32,768
MC68HC908AP16A 1,024 16,384
MC68HC908AP8A 1,024 8,19.

Features

Features of the MC68HC908AP64A include as below:
High-performance M68HC08 architecture
Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
Maximum internal bus frequency:8-MHz at 5V operating voltag Clock input options:
RC-oscillator,1- to 8-MHz crystal-oscillator with 32MHz internal PLL User program FLASH memory with security
(1) feature 62,368 bytes for MC68HC908AP64A ,32,768 bytes for MC68HC908AP32A,16,384 bytes for MC68HC908AP16A,8,192 bytes for MC68HC908AP8A On-chip RAM,2,048 bytes for MC68HC908AP64A and MC68HC908AP32A,1,024 bytes for MC68HC908AP16A and MC68HC908AP8A,Two 16-bit, 2-channel timer interface modules (TIM1 and TIM2) with selectable input capture,output compare, and PWM capability on each channe.

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

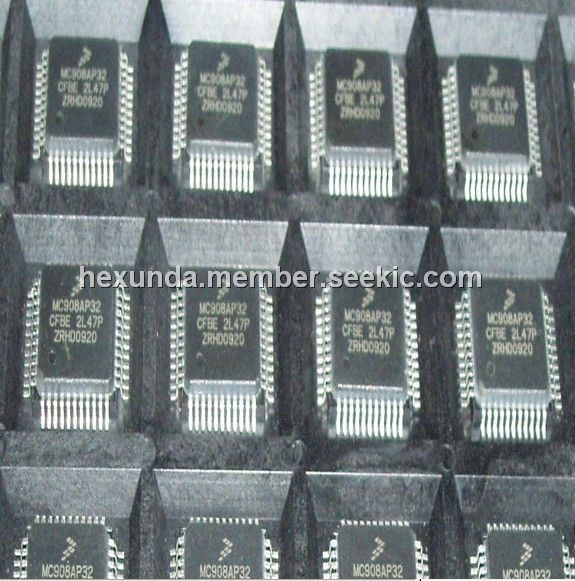

MC908AP32CFBE
MC908AP32CFBE
Freescale Semiconductor
8-bit Microcontrollers (MCU) MCU 32K FLASH 10 BIT ADC
Data Sheet
0-1: $4.06
1-25: $3.61
25-50: $3.47
50-100: $3.34
MC908AP32CFBER
MC908AP32CFBER
Freescale Semiconductor
8-bit Microcontrollers (MCU) MCU 32K FLASH 10 BIT ADC
Data Sheet
0-750: $3.37
750-1500: $2.93
1500-2250: $2.83
