Product Summary

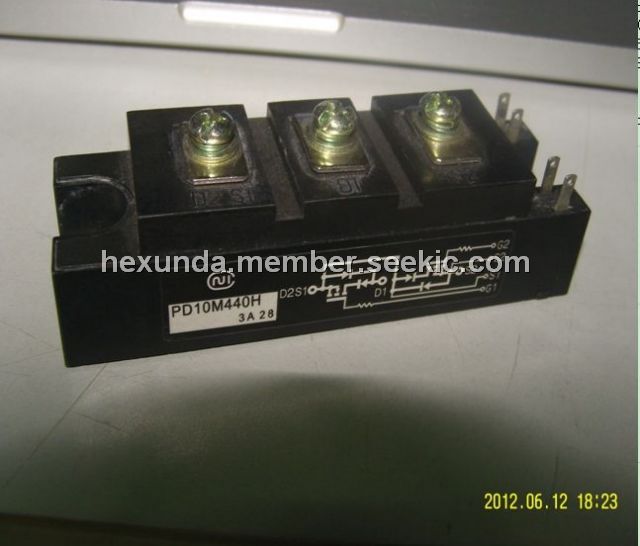

The PD10M440H is a dual 85A/500V mosfest module. The typical applications of the PD10M440H include Power Supply for the Communications and the Induction Heating.
Parametrics
PD10M440H maximum ratings: (1) Drain-Source Voltage(VGS=0V) VDSS: 450V to 500V; (2) Gate - Source Voltage VGSS : +/ - 20 V; (3) Continuous Drain Current Duty=50% Io : 85A (Tc=25°C) ; (4) Continuous Drain Current D.C. Io: 60A(Tc=25°C) ; (5) Pulsed Drain Current IDM :170A (Tc=25°C) ; (6) Total Power Dissipation PD :730A (Tc=25°C) ; (7) Operating Junction Temperature Range Tjw: -40 to +150 °C; (8) Storage Temperature Range Tstg: -40 to +125 °C (9) Isolation Voltage Terminals to Base AC, 1 min.) VISO: 2000 V.
Features
PD10M440H features: (1) Dual MOS FETs Cascaded Circuit ; (2) Prevented Body Diodes of MOSFETs by SBDs, and Ultra Fast Recovery Diodes Connected in Parallel; (3) 300KHz High Speed Switching Possible.

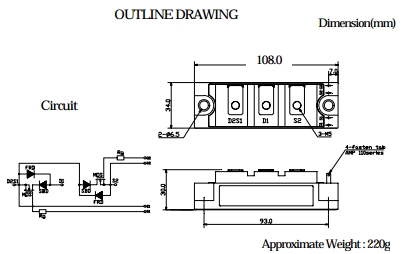

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PD10M440H |
Other |
|
Data Sheet |
Negotiable |
|
||||
