Product Summary

Mechanical data
Case :ITO220AB Molded plastic
Terminals :Plated Lead solderable per MIL-STD-202, Method 2026
Polarity: As Marked on Body
Mounting Position :Any
Weight :2.24gram
Marking :Type Number

Parametrics

MAXIMUM RATIXGS AND ELECTRICAL CHARACTERISTICS:
Average Repetitive Output Current @TC=95℃ If :10Amps
Typical Junction Capacitance (Note 1)CJ  :700pF

Features

Feature
(1)Schottky Barrier Chip;
(2)Guard Ring Transient Protection;
(3)High Current Capability, Low Forward;
(4)Low Reverse Leakage Current;
(5)High surge Current Capability;
(6)Plastic Material has UL Flammability Classification 94V-0;
(7)High temperature soldering 260 C/10seconds at terminals ;
(8)Pb free product are available 99% Sn above can meet RoHS;
(9)environment substance directive request

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

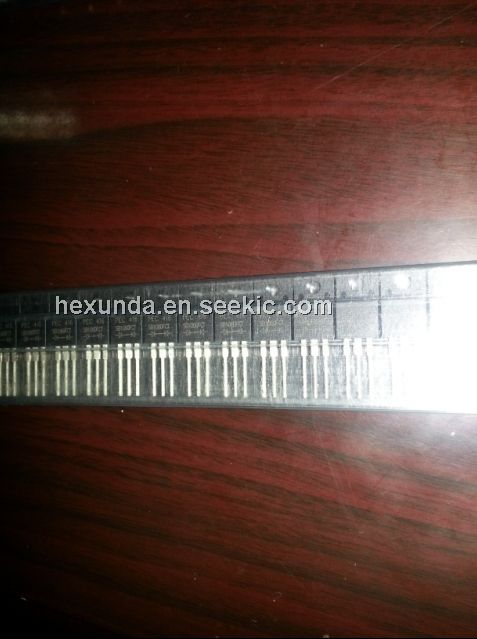

SB1060FCT
SB1060FCT
Other

Data Sheet
Negotiable
