Product Summary

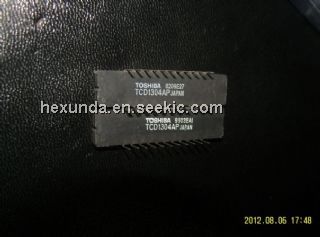

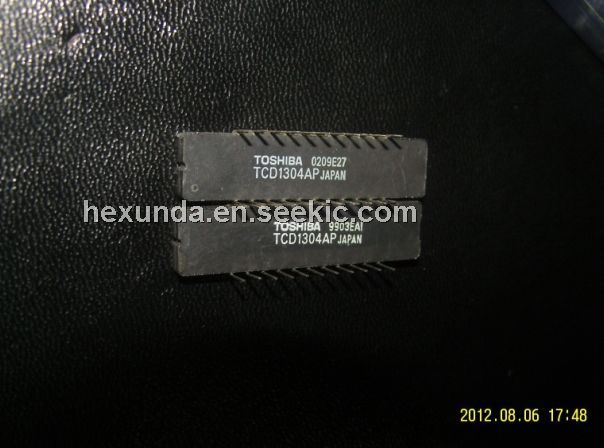

The TCD1304AP is a high sensitive and low dark current 3648-elements linear image sensor.
The sensor can be used for POS handscanner.The device is consist of sensitivity CCD chip. The TCD1304AP has eletronic shutter function(ICG).Electronic shutter function can keep always output voltage constant that vary with the intensity of lights .
Parametrics
MAXIMUM RATINGS
Master Clock Pulse Voltage V M : -0.3 ~ 7V
SH Pulse Voltage Vsh :-0.3 ~ 7V
ICH Pulse Voltage Vicg : -0.3 ~ 7V
Digital Power Supply VDD :-0.3 ~ 7V
Analog Power Supply VAD :-0.3 ~ 7V
Operating Temperature Topr :-25~60℃
Storage Temperature Tstg:-40~100℃
Features
FEATURES:
Pixel Number:3648
Pixel Size : 8μm X 200 μm
Photo Sensing Region: High Sensitive & Low Dark Current pn Photodiode
Internal Circuit : CCD Drive Circuit
Power Supply: Only 3.0V Drive(MIN.)
Function : Electronic Shutter Sample and Hold Circuit
Package : 22 Pin DIP (T-CAPP) TOSHIBA-CCD-ADVANCED-PLASTIC-PACKAGE
