Product Summary
The W29EE011-90Z is a 1-megabit, 5-volt only CMOS flash memory organized as 128K×8 bits. The W29EE011-90Z can be programmed and erased in-system with a standard 5V power supply. The W29EE011-90Z can also be programmed and erased using standard EPROM programmers.
Parametrics
W29EE011-90Z absolute maximum ratings: (1) Power Supply Voltage to Vss Potential: -0.5V to +7.0V; (2) Operating Temperature: 0°C to +70°C; (3) Storage Temperature: -65°C to +150°C; (4) D.C. Voltage on Any Pin to Ground Potential except OE: -0.5V to VDD to +10V; (5) Transient Voltage (< 20 nS ) on Any Pin to Ground Potential: -1.0V to VDD to 1.0V; (6) Voltage on Pin to Ground Potential: -0.5V to 12.5V.
Features
W29EE011-90Z features: (1) Single 5-volt program and erase operations; (2) Fast page-write operations; (3) Fast chip-erase operation: 50 mS; (4) Page program/erase cycles: 1K/10K; (5) Software and hardware data protection; (6) Latched address and data ; (7) JEDEC standard byte-wide pinouts; (8) Automatic program timing with internal VPP generation.

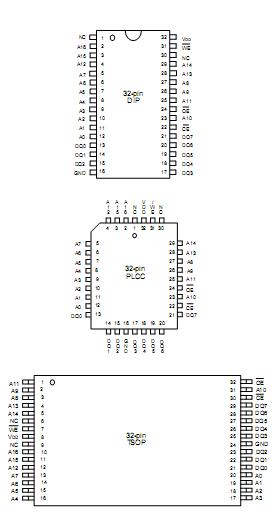

Diagrams
