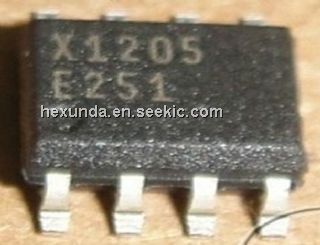

Product Summary

The X1205S8IZ is a real time clock/calendar. The oscillator uses an external, low-cost 32.768kHz crystal. All compensation and trim components are integrated on the chip. This eliminates several external discrete components and a trim capacitor, saving board area and component cost.

Parametrics

X1205S8IZ absolute maximum ratings: (1)temperature under bias: -65 to 135℃; (2)storage temperature: -65 to 150℃; (3)voltage on VCC: -0.5 to 7V; (4)DC output current: 5mA; (5)lead temperature: 300℃.

Features

X1205S8IZ features: (1)Network Routers, Hubs, Switches, Bridges; (2)Cellular Infrastructure Equipment; (3)Fixed Broadband Wireless Equipment; (4)Pagers/PDA; (5)POS Equipment; (6)Test Meters/Fixtures.

Diagrams

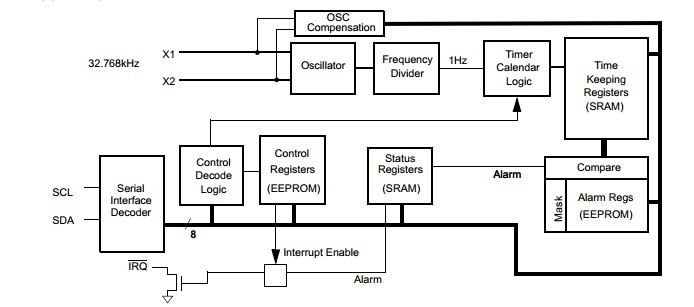

X1205S8IZ block diagram
