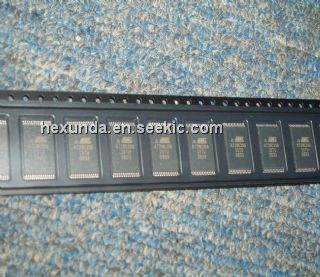

AT28C256-15TU

AT28C256-15TC - 256K 32K x 8 Paged CMOS E2PROM - ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.14~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	1.30 / Piece
10 ~ 100 :	1.25 / Piece
100 ~ 1000 :	1.14 / Piece

PartNumber:: AT28C256-15TU

Brand:: ATMEL Corporation - Atmel | D/C: 08+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Chaney's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-04

From Other Seller

Part Number:AT28C256-15TU
US $1.14 - 1.30
Quantity:

piece

Product Summary

Description：The AT28C256 is a high-performance Electrically Erasable and Programmable Read Only Memory. Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 150 ns with power dissipation of just 440 mW. When the device is deselected, the CMOS standby current is less than 200 μA.

Parametrics

Absolute Maximum Ratings:
Temperature Under Bias................. -55°C to +125°C
Storage Temperature...................... -65°C to +150°C
All Input Voltages(including NC Pins) with Respect to Ground ................... -0.6V to +6.25V
All Output Voltages with Respect to Ground .............-0.6V to VCC + 0.6V
Voltage on OE and A9 with Respect to Ground ................... -0.6V to +13.5V

Features

Features as below :
(1) Fast Read Access Time - 150 ns;
(2) Automatic Page Write Operation:Internal Address and Data Latches for 64-Bytes Internal Control Timer;
(3) Fast Write Cycle Times Page Write Cycle Time: 3 ms or 10 ms Maximum 1 to 64-Byte Page Write Operation;
(4) Low Power Dissipation:50 mA Active Current,200 μA CMOS Standby Current;
(5) Hardware and Software Data Protection;
(6) DATA Polling for End of Write Detection ;
(7) High Reliability CMOS Technology,Endurance: 104 or 105 Cycles ,Data Retention: 10 Years;
(8) Single 5V ± 10% Supply;
(9) CMOS and TTL Compatible Inputs and Outputs;
(10) JEDEC Approved Byte-Wide Pinout;
(11) Full Military, Commercial, and Industrial Temperature Ranges
