Product Summary

General description :The ES29LV160 is a 16 megabit, 3.0 volt-only flash memory device, organized as 2M x 8 bits (Byte
mode) or 1M x 16 bits (Word mode) which is configurable by BYTE#. Four boot sectors and thirty one main sectors are provided : 16Kbytes x 1, 8Kbytesx 2, 32Kbytes x 1 and 64Kbytes x 31. The device is manufactured with ESI’s proprietary, high performance and highly reliable 0.18um CMOS flash technology. The device can be programmed or erased in-system with standard 3.0 Volt Vcc supply( 2.7V-3.6V) and can also be programmed in standard EPROM programmers. The device offers  minimum endurance of 100,000 program/erase cycles and more than 10 years of data retention

Parametrics

ABSOLUTE MAXIMUM RATINGS:
Storage Temperature
Plastic Packages ..............................................-65oC to +150oC
Ambient Temperature
with Power Applied ...........................................-65oC to +125oC
Voltage with Respect to Ground
Vcc (Note 1) ..........................................................-0.5V to +4.0V
 A9, OE# and RESET#  (Note 2) ........................-0.5V to +12.5V
 All other pins (Note 1) ...................................-0.5V to Vcc + 0.5V
Output Short Circuit Current (Note 3) ................. 200 mA

Features

GENERAL FEATURES:
(1) Single power supply operation : 2.7V -3.6V for read, program and erase operations;
(2) Sector  Structure:1)16Kbyte x 1, 8Kbyte x 2, 32Kbyte x 1 boot sectors; 2) 64Kbyte x 31 sectors;
(3) Top or Bottom boot block:  1) ES29LV160DT for Top boot block device ; 2) ES29LV160DB for Bottom boot block device;
(4) Package Options: 48-pin TSOP, 48-ball FBGA ( 6 x 8 mm ), Pb-free packages ,All Pb-free products are RoHS-Compliant;
(5) Low Vcc write inhibit ;
(6) Manufactured on 0.18um process technology;
(7) Compatible with JEDEC standards: Pinout and software compatible with single-power supply flash standard

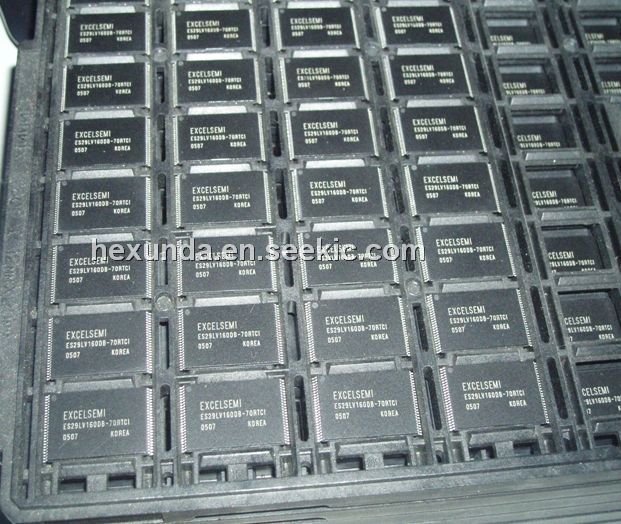

Diagrams
