Product Summary
Specification: Input range VDC 24V nom: 18-36, 48V nom: 36-76V, 110V nom: 82-185V, 280V nom: 200-400V Output Voltage Adj. Range VDC 2.97~3.63 4.5~5.5 10.8~13.2 13.5~16.5 21.6~26.4 25.2~30.8 43.2~52.8 Line Regulation - 0.4% or 20mV (whichever is greater) over entire input range with constant load Load Regulation - 0.8% or 40mV (whichever is greater) from no load to full load with constant input linRipple and Noise pk-pk 100mV 150mV 240mV 280mV 480mV Series Operation - Possible - Refer to installation manual Over Voltage Protection - 150 - 180% 125 - 145%Overload Protection - Approximately 105 - 140%, automatic recovery Remote On/Off - Low = ON, Open = OFF Remote Sensing - PH100S, PH150S, PH300S, PH600S models
Parallel operation - PH300S & PH600S only: Requires external circuitry Inverter Good signal - PH300S & PH600S only: Signal available for status of inverter
Thermal Protection - Internal sensing, self resetting
Cooling - Conduction or forced air. See application notes for cooling and heatsink selection
Operating Temperature Range - Baseplate temperature -20°C to +85°C (100°C on PH300 & PH600).
- -40°C start up possible - consult factory
Storage Temperature - -40°C to +85°C (+100°C on PH300 & PH600)
Temperature Coef? cient - 0.02%/°C
Isolation - Input to output: 3000VAC, Input to Baseplate: 2500VAC(1)
Isolation Resistance - Output to Baseplate -100MOhm at 500VDC and 70%RH
Safety Agency Approval - UL60950-1, CSA60950-1, EN60950-1 and CE Mark
Warranty - Two yearS
Parametrics
Input range VDC 24V nom: 18-36, 48V nom: 36-76V, 110V nom: 82-185V, 280V nom: 200-400V
Output Voltage Adj. Range VDC 2.97~3.63 4.5~5.5 10.8~13.2 13.5~16.5 21.6~26.4 25.2~30.8 43.2~52.8
Features
Features
(1) High Density;
(2) Wide Range Input;
(3) Output adjustment Capability;
(4) Remote On/Off;
(5) Fixed Switching Frequency;
(6) International Safety Approvals;
(7) Low component count
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

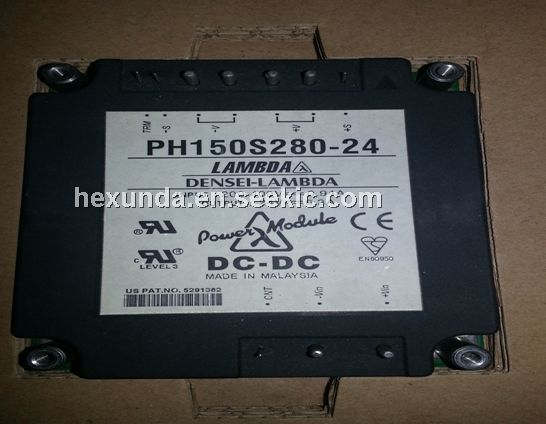

 PH150S280-24 |
TDK-Lambda |
DC/DC Converters 100W 24V 6.3A |
Data Sheet |
|
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
 |
PH1503 |
Weller |
Soldering Tools Weller Solder Stand For EC1503 Iron |
Data Sheet |
|
|
||||||||
 |
PH1504 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
|
PH1508 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
 |
PH150F110-12 |
TDK-Lambda |
DC/DC Converters 150W 12V 12.5A |
Data Sheet |
|
|
||||||||
|
PH150F110-15 |
TDK-Lambda |
DC/DC Converters 150W 15V 10A |
Data Sheet |
|
|
||||||||
|
PH150F110-2 |
TDK-Lambda |
DC/DC Converters 60W 2V 30A |
Data Sheet |
|
|
||||||||
