Product Summary

Description:The FOD814 consists of two gallium arsenide infrared emitting diodes, connected in inverse parallel, driving a silicon phototransistor output in a 4-pin dual in-line
package. The FOD817 Series consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 4-pin dual in-line package

Parametrics

Part Specifications:
Input Type:DC
Output Type:DC
Output Device:Transistor
Number of Elements:1
Reverse Breakdown Voltage:6V
Forward Voltage :1.4V
Forward Current :50mA
Collector-Emitter Voltage:70V
Package Type:PDIP SMD Black
Packaging:Tape and Reel
Collector Current (DC) :50mA
Isolation Voltage;5000Vrms
Power Dissipation;200mW
Collector-Emitter Saturation Voltage:0.2V
Current Transfer Ratio :400%
Fall Time:18000ns
Rise Time:18000ns
Pin Count:4
Mounting:Surface Mount
Operating Temp Range:-55C to 110C
Operating Temperature Classificatio:Industrial

Features

Features
(1) AC input response (FOD814 only);
(2) Applicable to Pb-free IR reflow soldering;
(3) Compact 4-pin package;
(4) Current transfer ratio in selected groups:FOD814: 20–300% FOD817: 50–600%,FOD814A: 50–150% FOD817A: 80–160%,FOD817B: 130–260%,FOD817C: 200–400%,FOD817D: 300–600%;
(5) C-UL, UL and VDE approved;
(6) High input-output isolation voltage of 5000Vrms;
(7) Minimum BVCEO of 70V guaranteed;
(8) Higher operating temperatures (versus H11AXXX counterparts)

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

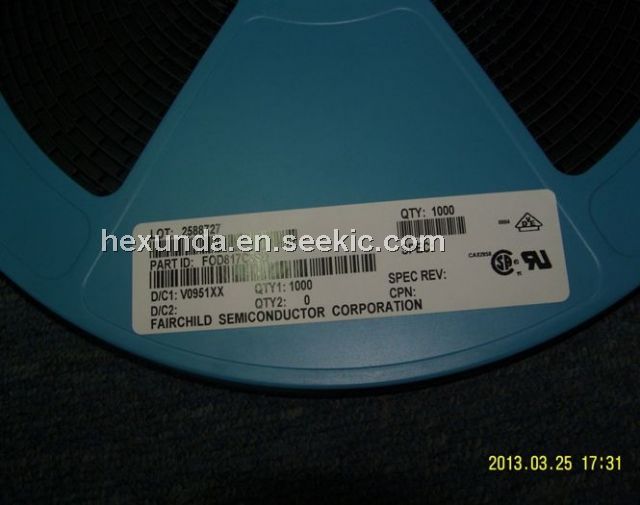

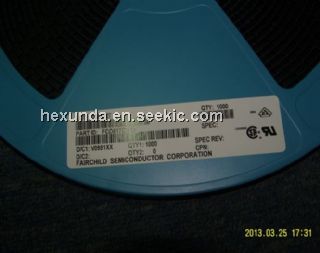

FOD817C3SD
FOD817C3SD
Fairchild Semiconductor
Transistor Output Optocouplers TRANSISTOR OUTPUT SMD LEAD BEND VDE
Data Sheet
0-1: $0.21
1-25: $0.19
25-100: $0.15
100-250: $0.11
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FOD8001
FOD8001
Fairchild Semiconductor
High Speed Optocouplers 3.3V Logic Gate Drvr w/High Noise Immnty
Data Sheet
0-1: $3.34
1-25: $2.68
25-100: $2.34
100-250: $2.14
FOD8001R2
FOD8001R2
Fairchild Semiconductor
High Speed Optocouplers 3.3V Logic Gate with High Noise Immunity
Data Sheet
0-1785: $1.81
1785-2500: $1.71
FOD8012
FOD8012
Fairchild Semiconductor
Logic Output Optocouplers High CMR Bi-Direct. Logic Gte Optocouplr
Data Sheet
0-1: $2.54
1-25: $2.27
25-100: $1.85
100-250: $1.67
FOD8012R2
FOD8012R2
Fairchild Semiconductor
High Speed Optocouplers High CMR Bi-Direct. Logic Gte Optocouplr
Data Sheet
0-1790: $1.68
1790-2500: $1.60
FOD814
FOD814
Fairchild Semiconductor
Transistor Output Optocouplers OPTO_LIGHTING
Data Sheet
0-1: $0.25
1-25: $0.20
25-100: $0.18
100-250: $0.16
FOD814300
FOD814300
Fairchild Semiconductor
Transistor Output Optocouplers OPTO_LIGHTING
Data Sheet
0-1: $0.25
1-25: $0.20
25-100: $0.17
100-250: $0.16
