Product Summary
Description:The MOC3051M and MOC3052M consist of a AlGaAs infrared emitting diode optically coupled to a non zerocrossing silicon bilateral AC switch (triac). These devices isolate low voltage logic from 115 and 240 Vac lines to
provide random phase control of high current triacs or thyristors. These devices feature greatly enhanced static
dv/dt capability to ensure stable switching performance of inductive loads.
Parametrics
Absolute Maximum Ratings (TA = 25°C unless otherwise specified.)
TSTG Storage Temperature :-40 to +150 °C
TOPR Operating Temperature :-40 to +85 °C
TSOL Lead Solder Temperature (Wave Solder) :260 for 10 sec °C
TJ Junction Temperature Range :-40 to +100 °C
VISO Isolation Surge Voltage(1) (peak AC voltage, 60Hz, 1 sec. duration): 7500 Vac(pk)
PD Total Device Power Dissipation @ 25°C: 330 mW
PD Derate above 25°C: 4.4 mW/°C
Features
Features:
Excellent IFT stability—IR emitting diode has low degradation
High isolation voltage—minimum 7500 peak VAC
Underwriters Laboratory (UL) recognized—File #E90700, Volume 2
600V peak blocking voltage
IEC60747-5-2 approved (File #94766)– Ordering option V (e.g. MOC3052VM)
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

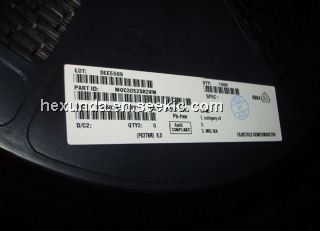

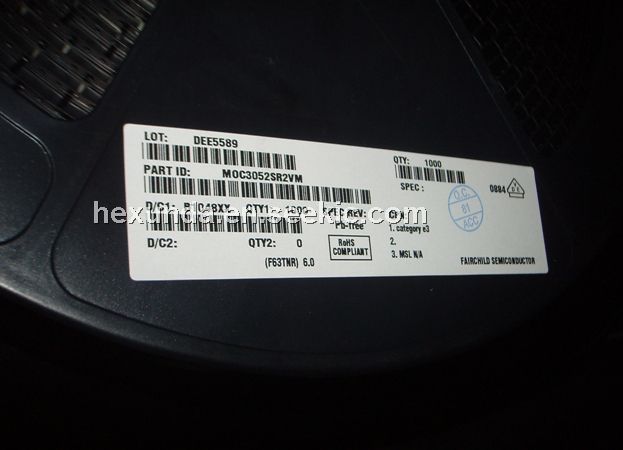

 MOC3052SR2VM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin 600V Optocoupl Rand Phs Triac Drvr |
Data Sheet |
|
|
||||||||||||
 |
MOC3052SR2VM_F132 |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Random Phase Triac Output VDE |
Data Sheet |
Negotiable |
|
||||||||||||
