Product Summary

3299W-1-502LF - 3/8 Square Trimming Potentiometer - Bourns Electronic Solutions

Parametrics

Electrical Characteristics
Standard Resistance Range..................................10 to 2 megohms(see standard resistance table)
Resistance Tolerance ............±10 % std.(tighter tolerance available)
Absolute Minimum Resistance..............................1 % or 2 ohms max. (whichever is greater)
Contact Resistance Variation...........................1.0 % or 3 ohms max.(whichever is greater)
Adjustability
Voltage.....................................±0.01 %
Resistance ...............................±0.05 %
Resolution.....................................Infinite
Insulation Resistance ................500 vdc.
1,000 megohms min.
Dielectric Strength
Sea Level ..................................900 vac
70,000 Feet...............................350 vac
Effective Travel..................25 turns nom

Features

Features as below :
(1) 3/8 ” Square/ Multiturn / Cermet /Industrial / Sealed;
(2) Five popular terminal styles;
(3) Standoffs;
(4) Patent #4427966 drive mechanism;
(5) RoHS compliant* version available

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

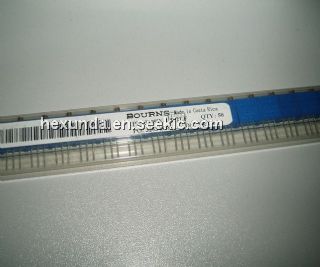

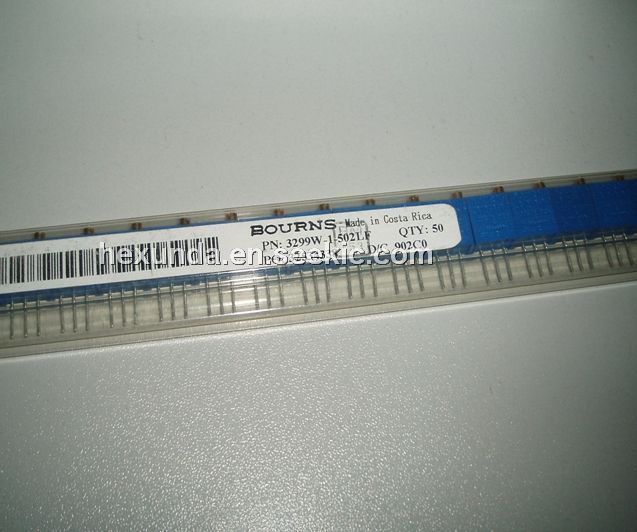

3299W-1-502LF
3299W-1-502LF
Bourns
Trimmer Resistors - Through Hole 5Kohms Standoffs Vertical Adjust 3/8"
Data Sheet
0-1: $1.71
1-10: $1.52
10-50: $1.33
50-100: $1.09
