Product Summary

Thick Film, Rectangular, Precision Resistor

Parametrics

applicable specifications :
(1)CECC40000/40400/40401;
(2)EN140400/IEC60115-1;
(3)EIA575;
(4)MIL-PRF-55342

Features

FEATURES as below :
(1) Metal glaze on high quality ceramic;
(2) Protective overglaze;
(3) Solder contacts on Ni barrier layer;
(4) Excellent stability in different environmental conditions;
(5) Low temperature coefficient and tight tolerances

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

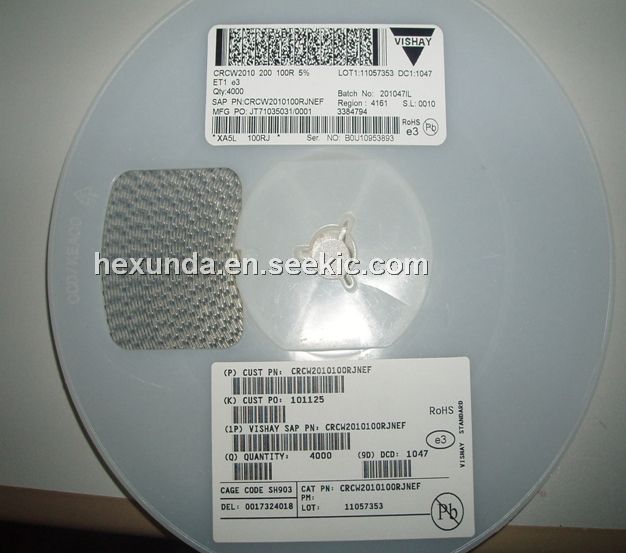

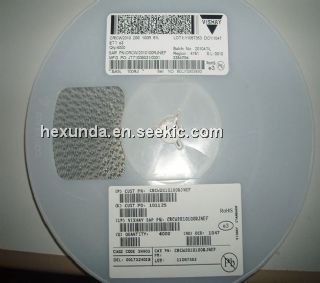

CRCW2010100RJNEF
CRCW2010100RJNEF
Vishay/Dale
Thick Film Resistors - SMD 3/4watt 100ohms 5%
Data Sheet
0-1: $0.20
1-25: $0.10
25-100: $0.06
100-1000: $0.04
1000-4000: $0.04
CRCW2010100RJNEFHP
CRCW2010100RJNEFHP
Vishay/Dale
Thick Film Resistors - SMD 1watt 100ohms 5% 200ppm High Power
Data Sheet
0-1: $0.66
1-50: $0.35
50-100: $0.20
100-1000: $0.14
1000-4000: $0.14
