Product Summary
DESCRIPTION:Production is strictly controlled and follows an extensive set of instructions established for reproducibility. A homogeneous film of metal alloy is deposited on a high grade
ceramic substrate and conditioned to achieve the desired temperature coefficient. A special laser is used to achieve the target value by smoothly cutting a meander groove in theresistive layer without damaging the ceramics. A further
conditioning is applied in order to stabilize the trimming result. The resistor elements are covered by a protective coating designed for electrical, mechanical and climatic protection. The result of the determined production is verified by an extensive testing procedure on 100 % of the individual chip resistors. This includes pulse load screening for the elimination of products with a potential risk of early life failures according to EN 140401-801, 2.1.2.2. Only accepted products are laid directly into the tape in accordance with EN 60286-3
Parametrics
Power Rating(s) 1/16W
Resistance 2kohm
Tolerance (+ or -) 0.1%
Temperature Coefficient ±25
Package / Case 0402
Packaging Tape and Reel
Operating Temp Range -55C to 125C
Features
FEATURES
(1) Excellent overall stability at different environmental conditions 0.05 % (1000 h rated power at 70 °C);
(2) Low temperature coefficient and tight tolerances (± 0.1 %;± 10 ppm/K);
(3) Metal film layer on high quality ceramic;
(4) SnPb termination plating, minimum 6 % Pb
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

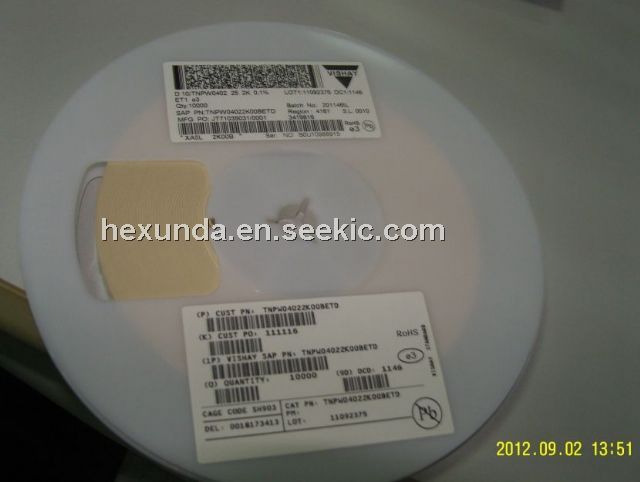

TNPW04022K00BETD |
RES 2.00K OHM 1/16W 0.1% 0402 |
Data Sheet |
|
|
||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
TNPW |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TNPW e3 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TNPW04021001BT |
Vishay |
Thin Film Resistors - SMD 1Kohms .5% 25ppm |
Data Sheet |
Negotiable |
|
|||||||||||||
TNPW04021002BT |
Vishay |
Thin Film Resistors - SMD 10Kohms .5% 25ppm |
Data Sheet |
|
|
|||||||||||||
TNPW0402100KBETD |
Vishay |
Thin Film Resistors - SMD 100Kohms .5% 25ppm |
Data Sheet |
|
|
|||||||||||||
TNPW040210K2BEED |
Vishay |
Thin Film Resistors - SMD 10.2Kohms .1% 25ppm |
Data Sheet |
|
|
