Product Summary

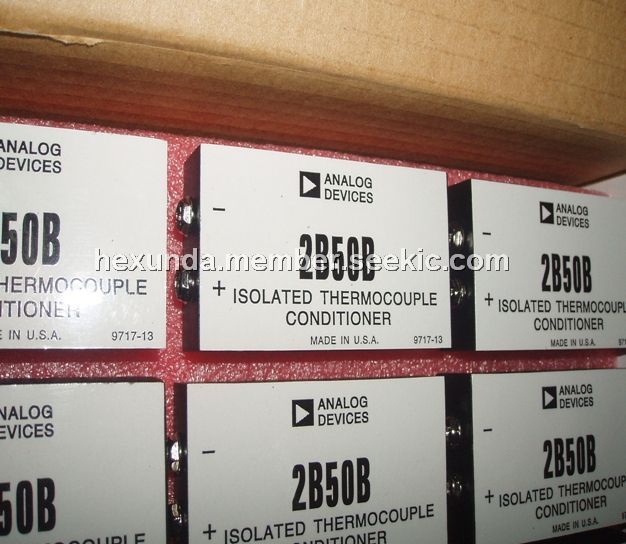

The model 2B50B is a high performance themocouple signmal conditioner providing input protection, isolation and common mode rejection, amplification, filtering and integral cold junction compensation in a single, compact packsge. The 2B50B has been designed ro condition low lever analog signals, such as those produced by themocouples, in the presence of hign common mode voltages and temperature measurement and control instrumentation.
Parametrics
2B50B maximum ratings: (1) maximum safe differential input voltage: 200V rms, continuous; (2) input nosie voltafe: 0.01Hz to 100Hz, RS=1kΩ; (3) Input span range: ±5mV to ±100mV; (4) Gain error: ±0.25%; (5) Power supply Outpur ±Vs (rated performance) : ±15V dc±10%@±0.5mA; (6) Storage temperature range: -55°C to +85°C.
Features
2B50B features: (1) Accepts J. K, T, E, R, S or B Thermocouple Types; (2) Internalty Provided Cold Junction Compentetion; (3) High CMV Isolation: ±1500V pk; (4) High CMR: 160dB min@60Hz; (5) Low Drift: ±1UV/°C max (2B50B) ; (6) High Linearity: ±0.01% max (2B50B) ; (7) Input Protection and Filtering; (8) Screw Terminal Input Connections .
Diagrams
 |
