Product Summary

General Description

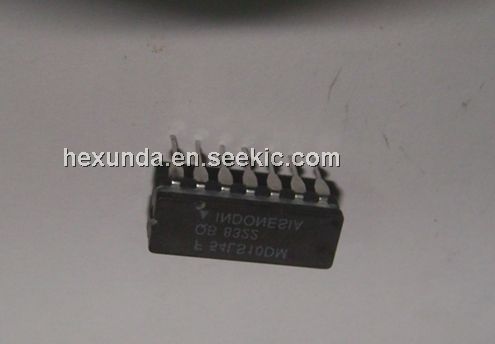

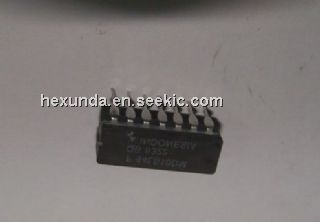

This device contains three independent gates each of which
performs the logic NAND function




Parametrics

Absolute Maximum Ratings (Note)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales
Office/Distributors for availability and specifications.
Supply Voltage :7V
Input Voltage :7V
Operating Free Air Temperature Range
DM54LS and 54LS : -55℃ to +125℃
DM74LS :0℃to a70℃
Storage Temperature Range: -65℃ to +150℃

Features

Features
 Alternate Military/Aerospace device (54LS10) is avail-
able. Contact a National Semiconductor Sales Office/
Distributor for specifications
