Product Summary
The ADS1211U is a precision, wide dynamic range, delta-sigma analog-to-digital converter with 24-bit resolution operating from a single +5V supply. The differential inputs are ideal for direct connection to transducers or low level voltage signals. The ADS1211U is designed for high resolution measurement applications in smart transmitters, industrial process control, weigh scales, chromatography and portable instrumentation. Applications of the ADS1211Uinclude: industrial process control, instrumentation, blood analysis, smart transmitters, portable instruments, weigh scales and pressure transducers.
Parametrics
ADS1211U absolute maximum ratings: (1) Analog Input Current: ±100mA, Momentary, ±10mA, Continuous; (2) Voltage: AGND -0.3V to AVDD +0.3V; (3) AVDD to DVDD: 0.3V to 6V; (4) AVDD to AGND: –0.3V to 6V; (5) DVDD to DGND: -0.3V to 6V; (6) AGND to DGND: ±0.3V; (7) REFIN Voltage to AGND: -0.3V to AVDD +0.3V; (8) Digital Input Voltage to DGND: -0.3V to DVDD +0.3V; (9) Digital Output Voltage to DGND: -0.3V to DVDD +0.3V; (10) Lead Temperature (soldering, 10s) : +300°C; (11) Power Dissipation (Any package) : 500mW.
Features
ADS1211U features: (1) delta-sigma A/D converter; (2) 23 bits effective resolution at 10Hz and 20 bits at 1000Hz; (3) differential inputs; (4) programmble gain amplifier; (5) flexiable SPI compatible SSI interface with 2-wire mode; (6) programmble cut-off frequency up to 15.6kHz; (7) internal/external reference; (8) on chip self-calibration.

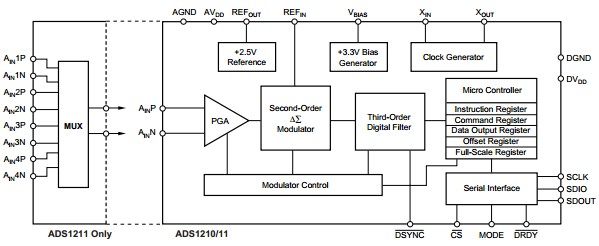

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS1211U |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
|
ADS1211U/1K |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
|
ADS1211UG4 |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
|
ADS1211U/1KG4 |
Texas Instruments |
ADC (A/D Converters) 24-Bit Anlg-to-Dig Converter |
Data Sheet |
|
|
||||||||||||
