Product Summary

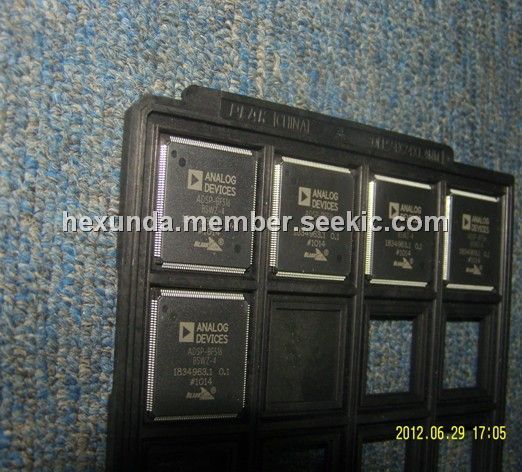

The ADSP-BF516BSWZ-4 processor is one member of the Blackfin family of product, incorporating the Analog Devices/Intel Micro Signal Architecture (MSA) . Blackfin processors combines a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single-instruction, multiple-data (SIMD) multimedia capabilities into a single instruction-set architecture.The ADSP-BF516BSWZ-4 is completely code compatible with other Blackfin processors
Parametrics
ADSP-BF516BSWZ-4 absolute maximum ratings: (1) Internal Supply Voltage (VDDINT) : TBDV to +TBDV; (2) External (I/O) Supply Voltage (VDDEXT) : -0.3V to +3.8V; (3) Input Voltage: -0.5V to +3.6V; (4) Output Voltage Swing: -0.5V to VDDEXT +0.5V; (5) Load Capacitance: 200pF; (6) Storage Temperature Range: -65°C to +150°C t; (7) Junction Temperature Underbias: +110°C.
Features
ADSP-BF516BSWZ-4 features: (1) Up to 400MHz high-performance Blackfin processor; (2) RISC-like register and instruction model for ease of programming and compiler-friendly support; (3) 176-lead LQFP with exposed pad; (4) 116K bytes of on-chip memory; (5) External memory controller with glueless support for SDRAM and asynchronous 8-bit and 16-bit memories; (6) Optional 4 Mbit on-chip SPI flash with boot option; (7) Memory management unit providing memory protection; (8) Two-wire interface (TWI) controller; (9) Removable storage interface (RSI) controller for MMC, SD, SDIO, and CE-ATA; (10) Debug/JTAG interface On-chip PLL capable of 0.5to 64 frequency multiplication.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADSP-BF516BSWZ-4 |
|
IC DSP 16/32B 400MHZ LP 176LQFP |
Data Sheet |
|
|
||||||||||||||||
|
ADSP-BF516BSWZ-4F4 |
|
IC DSP 16/32B 400MHZ LP 176LQFP |
Data Sheet |
|
|
||||||||||||||||
