Product Summary
LinkSwitch-XT incorporates a 700 V power MOSFET, oscillator, simple ON/OFF control scheme, a high voltage switched current source, frequency jittering, cycle-by-cycle current limit and thermal shutdown circuitry onto a monolithic IC. The start-up and operating power are derived directly from the DRAIN pin, eliminating the need for a bias winding and associated circuitry.
Parametrics
Easily meets all global energy efciency regulations with no added components No-load consumption <300 mW without bias winding at 265 VAC input (<50 mW with bias winding) ON/OFF control provides constant efciency to very light loads ideal for mandatory CEC regulation.
Features
(1) Accurate1.hysteretic thermal shutdown protection automatic recovery improves eld reliability;
(2) Universa2.l input range allows worldwide operation;
(3) Simple O3.N/OFF control, no loop compensation needed;
(4) Eliminat4.es bias winding simpler, lower cost transformer;
(5) Very low5.component count higher reliability and single ;
(6) side printed circuit board;
(7) Auto-res6.tart reduces delivered power by 95% during ;
(8)short circuit and open loop fault conditions;
(9) High ba7.ndwidth provides fast turn on with no overshoot ;
(10) and excellent transient load respons.
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

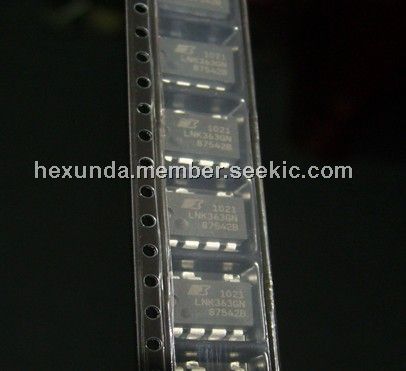

LNK363GN |
Power Integrations |
AC/DC Switching Converters 4.7W 85-265 VAC 7.5W 230 VAC |
Data Sheet |
|
|
|||||||||||||
LNK363GN-TL |
Power Integrations |
AC/DC Switching Converters 4.7W 85-265 VAC 7.5W 230 VAC |
Data Sheet |
|
|
