Product Summary

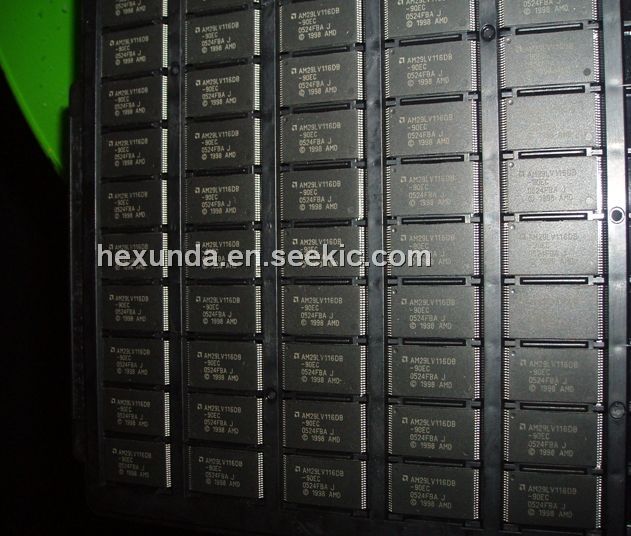

The AM29LV116DB-90EC is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes. The AM29LV116DB-90EC is offered in a 40-pin TSOP package. The offered in a 40-pin TSOP package. The AM29LV116DB-90EC requires only a single 3.0 volt power supply for both read and write functions. The AM29LV116DB-90EC is entirely command set compatible with the JEDEC single-power-supply Flash standard.
Parametrics
AM29LV116DB-90EC absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65°C to +150°C ; (2) Ambient Temperature with Power Applied: 65°C to +125°C ; (3) Voltage with Respect to Ground Vcc: -0.5V to +4.0V, RESET: -0.5V to +12.5V; (4) All other pins: -0.5V to Vcc +0.5V; (5) Output Short Circuit Current: 200mA.
Features
AM29LV116DB-90EC features: (1) Single power supply operation; (2) Ultra low power consumption (typical values at 5MHz) ; (3) Flexible sector architecture; (4) Unlock Bypass Program Command; (5) Top or bottom boot block configurations available; (6) Compatibility with JEDEC standards; (7) Data# Polling and toggle bits; (8) Erase Suspend/Erase Resume.
Diagrams
