Product Summary

Description
Advanced Power MOSFETs from APEC provide the designer with
the best combination of fast switching, ruggedized device design low on-resistance and cost-effectiveness.

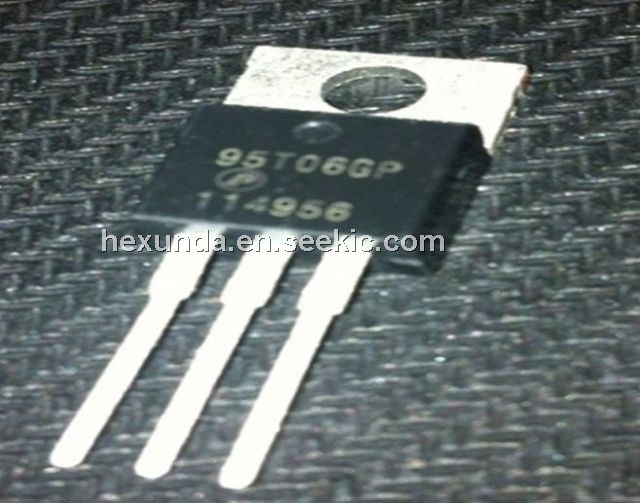

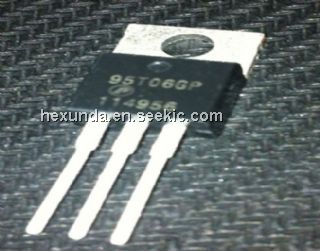

The TO-220 package is widely preferred for commercial-industrial
power applications and suited for low voltage applications such as
DC/DC converters.

Parametrics

Absolute Maximum Ratings
VDs Drain-Source Voltage :75V
VGs Gate-Source Voltage: ±20V
ID@TC=25℃ Continuous Drain Current, VGS @ 10V3 ：80A
ID@TC=100℃ Continuous Drain Current, VGS @ 10V :70A
IDM Pulsed Drain Current1 :320A
PD@TC=25℃ Total Power Dissipation :320W
Linear Derating Factor :2 W/℃
EAs Single Pulse Avalanche Energy4 ：450mJ
TSTG Storage Temperature Range :-55 to 175 ℃
Tj Operating Junction Temperature Range:-55 to 175 ℃

Features

(1) Simple Drive Requirement;
(2) Lower On-resistance ;
(3) Fast Switching Characteristic
