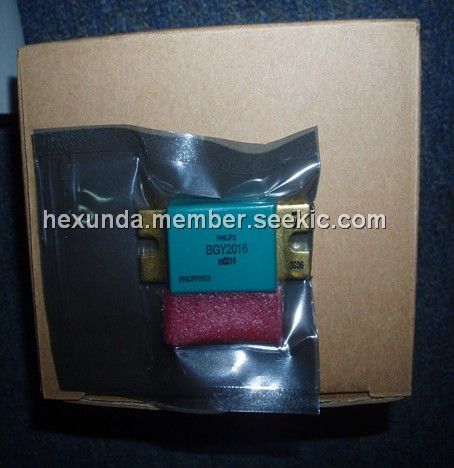

The BGY2016 is a three-stage UHF amplifier module in a SOT365A package with a plastic cap.The BGY2016 consists of three NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic AlN substrate. Base station transmitting equipment operating in the 1805 to 1990MHz frequency band is one application of the BGY2016.
Parametrics
BGY2016 absolute maximum ratings: (1) VS1 DC supply voltage: 4.5 to 5.5V; (2) VS2 DC supply voltage: 28 V; (3) PD input drive power: 120mW; (4) PL load power Tmb=25 °C , 20 W; (5) Tstg storage temperature: -30 +100°C; (6) Tmb operating mounting base temperature: -10 +90 °C.
Features
BGY2016 features: (1) 26V nominal supply voltage; (2) 16W output power into a load of 50Ω with an RF drive power of ≤20 mW.

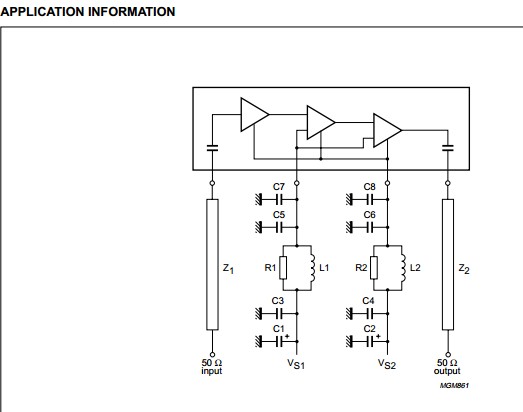

Diagrams
