Product Summary
Target Applications,Examples include:
1. Multi-line voice/data/fax processing
2. Video conferencing
3. Audio application
4. Contro

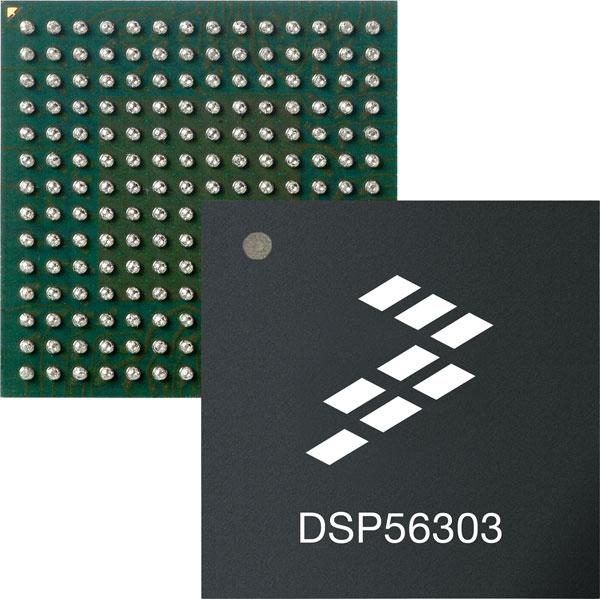

The DSP56303 is a member of the DSP56300 core family of programmable CMOS DSPs. The DSP56303 offers 100 MMACS using an internal 100 MHz clock at 3.0 .6 volts.Significant architectural ; features of the DSP56300 core family include a barrel shifter, 24-bit addressing, instruction cache, and DMA. The DSP56300 core family ; offers a rich instruction set and low power dissipation, as well as increasing levels of speed and power to enable ; wireless, telecommunications, and multimedia products.
Parametrics
19224-bit bootstrap ROM 8 K24-bit RAM total Program RAM, instruction cache, X data RAM, and Y data RAM sizes are programmable,Program RAM Size Instruction Cache Size X Data RAM ,Size Y Data RAM Size Instruction Cache Switch Mode 4096 24-bit 0 2048 24-bit 2048 24-bit disabled disabled 3072 24-bit 1024 24-bit 2048 24-bit 2048 24-bit enabled disabled 2048 24-bit 0 3072 24-bit 3072 24-bit disabled enabled 1024 24-bit 1024 24-bit 3072 24-bit 3072 24-bi.
Features
High-Performance DSP56300 Cor Internal Peripheral Internal Memorie External Memory Expansio Power Dissipatio Packaging.
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DSP56303VF100 |
Freescale Semiconductor |
Digital Signal Processors & Controllers (DSP, DSC) 100Mhz/100MMACS |
Data Sheet |
|
|
||||||||||
 |
DSP56303VF100B1 |
Freescale Semiconductor |
Digital Signal Processors & Controllers (DSP, DSC) 24 BIT DSP |
Data Sheet |
|
|
||||||||||
|
DSP56303VF100R2 |
Freescale Semiconductor |
Digital Signal Processors & Controllers (DSP, DSC) 24 BIT DSP |
Data Sheet |
|
|
||||||||||
