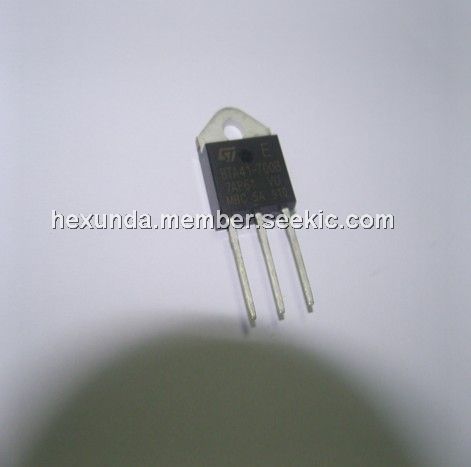

Product Summary
The BTA41-700B is a high performance glass passivated PNPN device. suitables for general purpose applications where high surge current capability is required. Applications of the BTA41-700B include: phase control and static switching on inductive or resistive load.
Parametrics
BTA41-700B absolute ratings: (limiting values) : (1) IT(RMS) RMS on-state current (360°C conduction angle) : BTA, Tc=75°C: 40A, BTB, Tc=85°C: 5A;(2) Non repetitive surge peak on-state current(Tj initial=25°C) , tp=8.3ms, ITSM: 315A, tp=10ms: 300A; (3) I2t value tp=10 ms: 450A2s; (4) dI/dt Critical rate of rise of on-state current Gate supply IG=500mA, diG/dt=1A/μs, Repetitive F=50Hz: 10 A/μs, Non Repetitive 50; (5) Tstg Tj Storage and operating junction temperature range: -40 to + 150°C,n- 40 to + 125°C; (6) Tl Maximum lead temperature for soldering during 10 s at 4.5 mm from case: 260 °C.
Features
BTA41-700Bea feaures: (1) )HIGH SURGE CURRENT CAPABILITY; (2) COMMUTATION: (dV/dt)c > 10V/μs; (3) BTA Family: INSULATING VOLTAGE= 2500V (RMS) (UL RECOGNIZED: E81734) .
Diagrams
