Product Summary
The BTB04-600SL 4 quadrants TRIAC is intended for general purpose applications where high surge current capability is required, such as lighting, corded power tools, industrial. This TRIAC features a gate current capability sensitivity of 10mA.
Parametrics
BTB04-600SL absolute maximum ratings: (1) IT (RMS) RMS on-state current (full sine wave) TO-220AB Tc=105°C: 4A; (2) ITSM Non repetitive surge peak on-state current (full cycle, Tj initial =25°C) F=50 Hz , t=20ms: 35 A; (3) ITSM Non repetitive surge peak on-state current (full cycle, Tj initial=25°C) F = 6 Hz t=16.7ms: 38A; (4) I2t value for fusing tp = 10ms: 6A2s; (5) dI/dt Critical rate of rise of on-state currentIG = 2 x IGT, tr ≤ 100 ns Repetitive F=100Hz : 50 A/μs; (6) IGM Peak gate tp = 20μs Tj = 125°C : 4 A; (7) PG (AV) Average gate power dissipation Tj=125°C: 0.5 W; (8) Tstg, Tj Storage junction temperature range :-40 to +150°C; (9) Operating junction temperature range: -40 to +125°C.
Features
BTB04-600SL features: (1) IT(RMS) : 4 A; (2) VDRM / VRRM :600V; (3) IGT(Q1) :10mA.

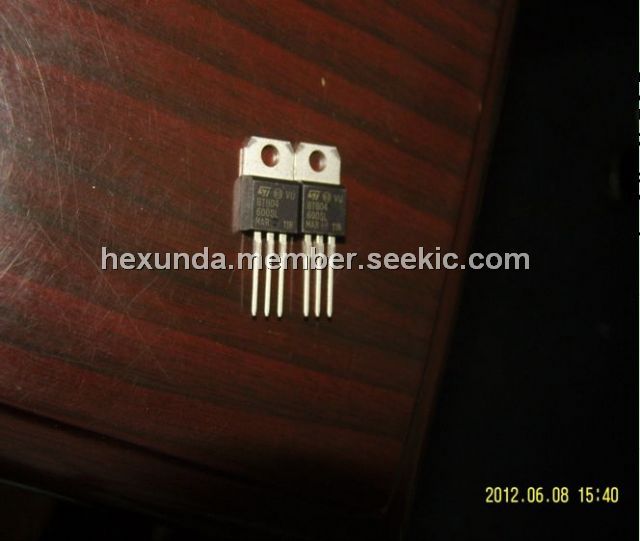

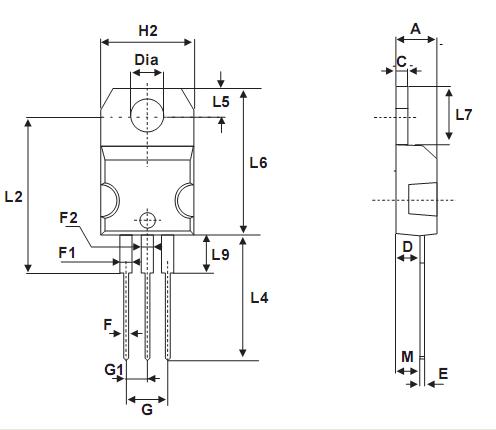

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BTB04-600SL |
![]() STMicroelectronics |
![]() Triacs 4 Amp 600 Volt |
![]() Data Sheet |
![]()
|
|
||||||||||||
