Product Summary
These units are single, dual andquad channel, hermetically sealed optocouplers. The products are capable of operation and storage over the full military temperature range and can be purchased as either standard product or with full MIL-PRF-38534 Class Level H or K testing or from the appropriate DSCC Drawing.
All devices are manufactured and tested on a MIL-PRF-38534 certified line and are included in the DSCC Qualified Manufacturers List QML-38534 for Hybrid Microcircuits. Each channel contains an AlGaAs light emitting diode which is optically coupled to an integrated high gain photon detector.
The detector has a threshold with hysteresis which provides differential mode noise immunity and eliminates the potential for output signal chatter. The detector in the single channel units has a tri-state output stag.
Parametrics
HCPL-520x*
5962-88768
HCPL-523x
HCPL-623x
HCPL-625x
5962-8876
Features
(1)Dual Marked with Device;
(2)Part Number and DSCC;
(3)Standard Microcircuit;
(4)Drawing;
(5)Manufactured and Tested on;
(6)a MIL-PRF-38534 Certified;
(7)Line;
(8)QML-38534, Class H and K;
(9)Four Hermetically Sealed;
(10)Package Configurations;
(11)Performance Guaranteed;
(12)over -55C to +125C;
(13)Wide VCC Range (4.5 to 20 V);
(14)350 ns Maximum Propagation Delay;
(15)CMR: > 10,000 V/s Typical;
(16)1500 Vdc Withstand Test;
(17)Voltage;
(18)Three State Output Available;
(19)High Radiation Immunity;
(20)HCPL-2200/31 Function;
(21)Compatibility;
(22)Reliability Data Available;
(23)Compatible with LSTTL,;
(24)TTL, and CMOS Logi
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

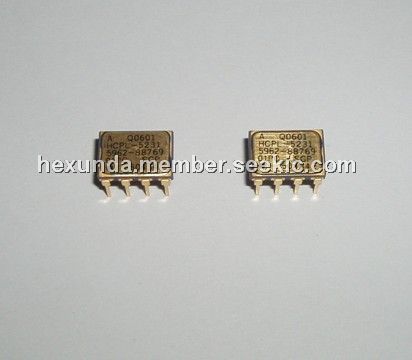

 HCPL-5231 |
Avago Technologies |
High Speed Optocouplers 2Ch 8mA 200mW Hermetically sealed |
Data Sheet |
|
|
||||||||
|
HCPL-5231#100 |
Avago Technologies |
High Speed Optocouplers 2Ch 8mA 200mW Hermetically sealed |
Data Sheet |
|
|
||||||||
|
HCPL-5231#300 |
Avago Technologies |
High Speed Optocouplers 2Ch 8mA 200mW Hermetically sealed |
Data Sheet |
|
|
||||||||
|
HCPL-5231#200 |
Avago Technologies |
High Speed Optocouplers 2Ch 8mA 200mW Hermetically sealed |
Data Sheet |
|
|
||||||||
