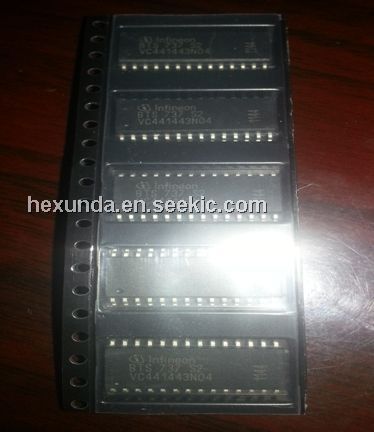

Product Summary

General Description
? N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology.
? Providing embedded protective function

Parametrics

Part Specifications:
Switch Type:High Side
Power Switch Family:BTS737S2
Input Voltage:-10 to 16V
Power Switch On Resistance:0.035Ohm
Output Current:5A
Number of Outputs:4
Mounting:Surface Mount
Package Type:DSO
Operating Temperature (Min):-40C
Operating Temperature (Max):150C
Operating Temperature Classification:Automotive
Pin Count:28
Power Dissipation:3.7W

Features

Basic Functions
? Very low standby current
? Improved electromagnetic compatibility (EMC)
? CMOS compatible input
? Stable behaviour at undervoltage
? Wide operating voltage range
Protection Functions
? Reverse battery protection without external components(ReverSave )
? Short circuit protection
? Overload protection
? Current limitation
? Thermal shutdown
? Overvoltage protection (not load dump) without external resistor
? Loss of ground protection
? Electrostatic discharge protection (ESD)
Diagnostic Function
? Proportional load current sense (with defined fault signal
during thermal shutdown)
