Product Summary
The CPC1906Y is a 1-Form-A solid state relay. The CPC1906Y employs optically coupled MOSFET technology to provide 2500Vrms of input o output isolation. Applications of the CPC1906Y include: Industrial Controls, Motor Control, Robotics, Medical Equipment—Patient/Equipment Isolation, Instrumentation, Multiplexers, Data Acquisition, Electronic Switching, I/O Subsystems, Meters (Watt-Hour, Water, IC Equipmentand Home Appliances.
Parametrics
CPC1906Y absolute maximum ratings: (1) Blocking Voltage60V; (2) Reverse Input Voltage: 5V; (3) Input control Current Peak( 10ms): 1A; (4) Input Power Dissipation: 150mW; (5) Isolation voltage Input to Output: 2500Vrms; (6) Operational Temperature: -40 °C to +85°C; (7) Storage Temperature: -40°C to +125°C.
Features
CPC1906Y features: (1) Power SIP Package; (2) Handle Load Currents Up to 2Arms; (3) High Reliability; (4) No Moving Parts; (5) Low Drive Power Requirements (TTL/CMOS Compatible); (6) Arc-Free With No Circuits; (7) 2500Vrms Input/Output Isolation; (8) No EMI/RFI Generation; (9) Machine Insertable, Wave Solderable.

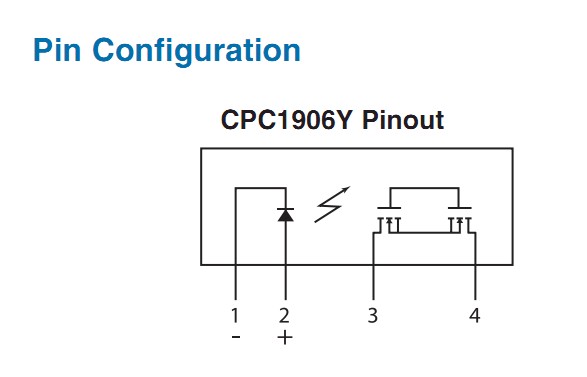

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

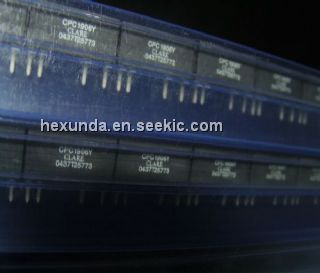

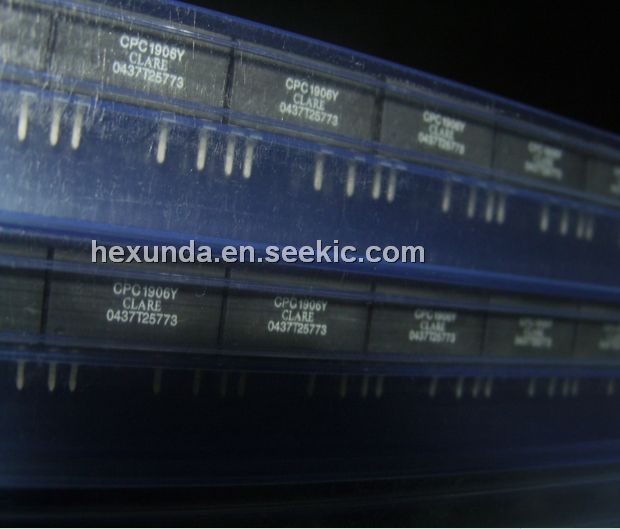

CPC1906Y |
Clare |
Solid State Relays SPST-NO 4PIN SIP |
Data Sheet |
Negotiable |
|
|||||
