Product Summary

The DMG3415U is a P-channel enhancement mode mosfet. The DMG3415U is designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. The DMG3415U is used in DC-DC Converters, Power management functions.

Parametrics

DMG3415U absolute maximum ratings: (1)Drain-Source Voltage VDSS: -20 V; (2)Gate-Source Voltage VGSS: ±8 V; (3)Continuous Drain Current VGS = -4.5V ID: -4.0A at Steady TA = 25℃; -3.5A at State TA = 70℃; (4)Pulsed Drain Current (10us pulse, duty cycle = 1%) IDM: -30 A.

Features

DMG3415U features: (1)Low On-Resistance: 43.5mΩ@ -4.5V; 53mΩ -2.5V; 71mΩ -1.8V; (2)Low Input Capacitance; (3)Fast Switching Speed; (4)Low Input/Output Leakage; (5)Lead Free By Design/RoHS Compliant; (6)ESD Protected Up To 3kV; (7)Green Device; (8)Qualified to AEC-Q101 Standards for High Reliability.

Diagrams

DMG3415U block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DMG3415U
DMG3415U

Other


Data Sheet

Negotiable
DMG3415U-7
DMG3415U-7

Diodes Inc.

MOSFET P-CHANNEL ENHANCEMENT MODE

Data Sheet

0-1: $0.33
1-10: $0.26
10-100: $0.20
100-250: $0.17

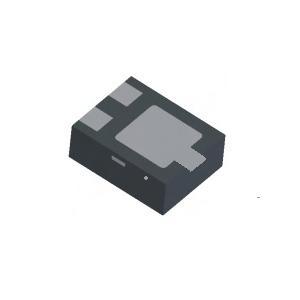

DMG3415UFY4-7
DMG3415UFY4-7

Diodes Inc.

MOSFET MOSFET P-CHAN.

Data Sheet

0-1: $0.33
1-10: $0.26
10-100: $0.20
100-250: $0.17
