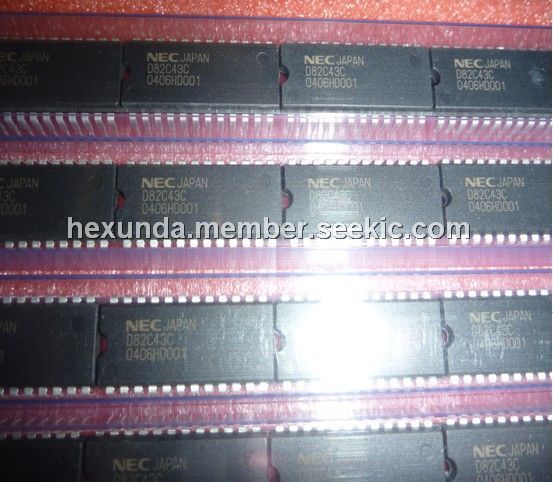

Product Summary

The D82C43C input/output expander is directly compatibal with the μPD8048/C48 family of single-chip microcomputers. Using CMOS technology, the D82C43C provides high drive capabilitied while requiring only a single +5V supply voltage. The D82C43C interfaces to the uPD8048/C48 family through a 4-bit/O port and offers four 4-bit bidirectional static I/O ports. The D82C43C is accessible with its own ANL, MOV, and ORL instructions.

Parametrics

D82C43C absolutly maximum ratings: (1) power supply voltage, VDD: -0.5V to +7V; (2) input voltage V1: -0.3V to VDD +0.3V; (3) output voltage V0: -0.3V to VDD +0.3V; (4) operating temperature, Topt: -40°C to +85°C; (5) storage temperature, Tstg: -65°C to +150°C; (6) power dissipation Po: 1.0W.

Features

D82C43C features: (1) Four 4-bit I/O ports; (2) High output drive; (3) Logical AND and OR directly to ports; (4) Compatible with industry standard 8243; (5) Directly extension of resident uPD8048/C48 I/O ports; (6) Fully compatible with μPD8048/C48 microcomputer family; (7) CMOS technology; 8) Single +5V supply.





Diagrams

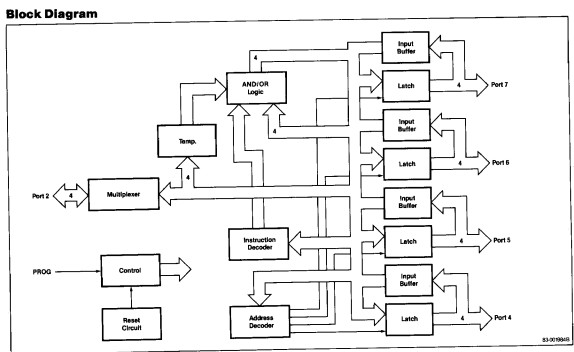

D82C43C Block Diagram
