Product Summary

The GBPC3512A is a vishay semiconductors bridge rectifier. A range of extremely compact, the GBPC3512A offers efficient and reliable operation. The GBPC3512A is intended for use in generalpurpose and instrumentation applications.

Parametrics

GBPC3512A major ratings: (1) IO: 35A; (2) IFSM@50Hz: 475A; (3) IFSM@60Hz: 500A; (4) I2t@50Hz: 1130A2S; (5) VRRM Range: 200 to 1200V; (6) Tj: -55 to 150°C.

Features

GBPC3512A features: (1) Universal, 3 way terminals:push-on, wrap around or solder; (2)High thermal conductivity package,electrically insulated case; (3)Polarity symbols are moulded on body of the plastic box; (4) Center hole fixing; (5) Glass passivated diode chips; (6) Excellent power/ volume ratio; (7) Nickel plated terminals suitable for High Temperature soldering at 250-260°C max. time 8 - 10 seconds; (8) Wire lead version available; (9) UL E 62320 approve.

Diagrams

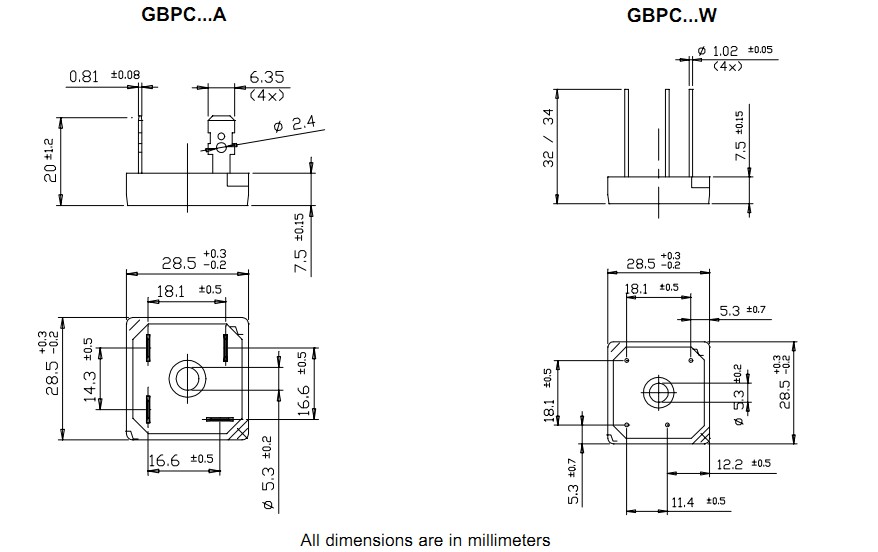

GBPC3512A Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

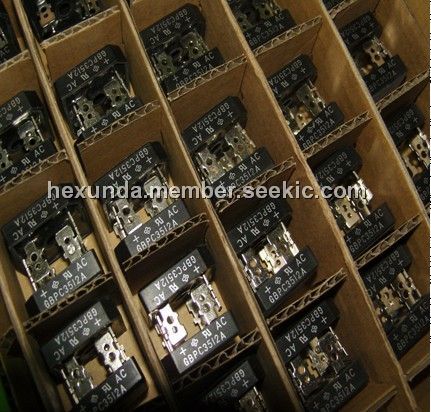

GBPC3512A
GBPC3512A

RECT BRIDGE 1-PH 1200V 35A GBPCA
Data Sheet
0-1: $2.45
1-10: $2.19
10-25: $1.97
25-100: $1.79
100-250: $1.62
250-500: $1.45
500-1000: $1.23
1000-2500: $1.16
2500-5000: $1.12
