Product Summary
The TW280X includes four high quality NTSC/ PAL video decoders, which convert analog composite to digital component YCbCr for security application. The TW280X contains four 10-bit A/D and proprietary digital gain/clamp controllers and utilizes proprietary techniques for separating luminance & chrominance to reduce both crossluminance and cross-chrominance artifacts.
Four built-in motion detectors can also increase the feature of security system.The high performance dual scalers in each channel offer two differently scaled video
outputs with 54MHz ITU-R BT.656 format for security system design.
Parametrics
VSCALE = [120 / 240] * (2^16 閳?1) = 0x7FFF for 60Hz
VSCALE = [144 / 288] * (2^16 閳?1) = 0x7FFF for 50H
Features
1 Accepts all NTSC (M/N/4.43) / PAL(B/D/G/H/I/K/L/M/N/60) standard formats with auto detection
2 Four 10-bit video CMOS analog to digital converters
3 Adjust video level with proprietary automatic clamp and gain control system
4 Proprietary architecture for locking to weak, noisy, or unstable signals
5 High performance adaptive comb filters for all NTSC/PAL standards
6 IF compensation filter for improvement of color demodulation
7 PAL delay lines for correcting PAL phase errors
8 Programmable hue, saturation, contrast, brightness and sharpness
9 Dual high quality horizontal and vertical down scaler for each channel
10 Four built-in motion detectors for security system
11 Supports the standard ITU-R BT.656 / 8bit ITU-R BT.601 format
12 Supports two differently scaled output mode with 54MHz ITU-R BT.656 format
13 Supports a two-wire serial or parallel interface
14 Low power consumption
15 128 PQFP package.
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

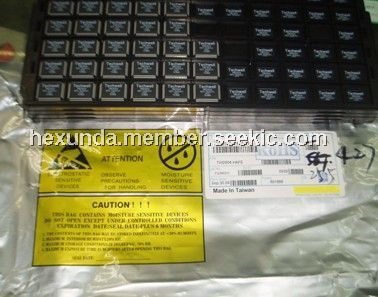

TW2804 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TW2804-FE |
Intersil |
Video ICs 4 IN 1 NTSC/ PALVIDE O DECO SECUR APPS 14 |
Data Sheet |
|
|
|||||||||||||
TW2804-FE-EVAL |
EVAL BOARD FOR TW2804 |
Data Sheet |
|
|
