HGTG20N60A4

Product Summary

600V, SMPS Series N-Channel IGBTs

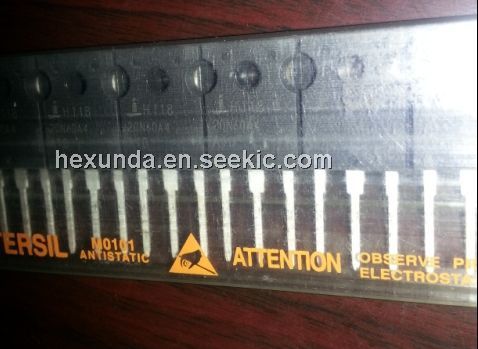

The HGTG20N60A4 and HGTP20N60A4 are MOS gated
high voltage switching devices combining the best features
of MOSFETs and bipolar transistors. These devices have
the high input impedance of a MOSFET and the low on-state
conduction loss of a bipolar transistor. The much lower
on-state voltage drop varies only moderately between 25℃
and 150℃.
This IGBT is ideal for many high voltage switching
applications operating at high frequencies where low
conduction losses are essential. This device has been
optimized for high frequency switch mode power
supplies.
Formerly Developmental Type TA49339

Parametrics

Absolute Maximum Ratings TC = 25℃, Unless Otherwise Specified
Collector to Emitter Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .BVCES 600 V
Collector Current Continuous
At TC = 25℃ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC25 70 A
At TC = 110℃ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IC110 40 A
Collector Current Pulsed (Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ICM 280 A
Gate to Emitter Voltage Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGES ±20 V
Gate to Emitter Voltage Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VGEM ±30 V
Switching Safe Operating Area at TJ = 150℃ (Figure 2) . . . . . . . . . . . . . . . . . . . . . . . SSOA 100A at 600V
Power Dissipation Total at TC = 25℃ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PD 290 W
Power Dissipation Derating TC > 25℃ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.32 W/℃
Operating and Storage Junction Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . TJ, TSTG -55 to 150℃
Maximum Lead Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TL 300℃
Package Body for 10s, See Tech Brief 334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TPKG 260℃

Features

Features
? >100kHz Operation at 390V, 20A
? 200kHz Operation at 390V, 12A
? 600V Switching SOA Capability
? Typical Fall Time. . . . . . . . . . . . . . . . . 55ns at TJ = 125℃
? Low Conduction Loss
? Temperature Compensating SABER? Model
? Related Literature
- TB334 “Guidelines for Soldering Surface Mount Components to PC Board
