Product Summary

The IRFP460A is a SMS mosfet. Applications of theIRFP460A include: switch mode power supply ( SMPS ) ; uninterruptable power supply and high speed power switching.

Parametrics

IRFP460A absolute maximum ratings: (1) ID@TC = 25°C Continuous Drain Current, VGS@10V: 20A; (2) ID@TC=100°C Continuous Drain Current, VGS@10V: 13A; (3) IDM Pulsed Drain Current: 80A; (4) PD@TC=25°C Power Dissipation: 280W; (5) Linear Derating Factor 2.2W/°C; (6) VGS Gate-to-Source Voltage: ±30V; (7) dv/dt Peak Diode Recovery dv/dt 3.8 V/ns; (8) TJ Operating Junction: -55 to +150°C; (9) TSTG Storage Temperature Range: -55 to +150°C; (10) Soldering Temperature, for 10 seconds: 300 (1.6mm from case) .

Features

IRFP460A features: (1) Low Gate Charge Qg results in Simple Drive Requirement; (2) Improved Gate, Avalanche and dynamic dv/dt Ruggedness; (3) Fully Characterized Capacitance and Avalanche Voltage and Current; (4) Effective Coss specified.

Diagrams

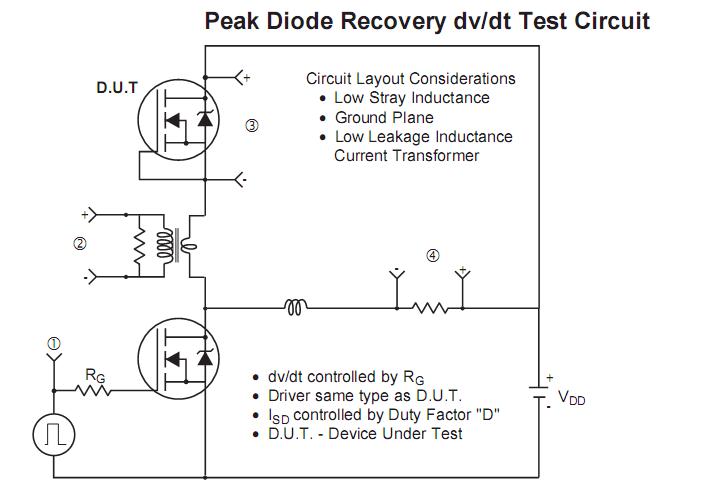

IRFP460A Test Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFP460A
IRFP460A
Vishay/Siliconix
MOSFET N-Chan 500V 20 Amp
Data Sheet
0-331: $5.42
331-500: $4.97
500-1000: $4.78
