Product Summary
General Description:The LMS1585A and LMS1587 are low dropout positive regulators with output load current of 5A and 3A respectively.
Their low dropout voltage (1.2V) and fast transient response make them an excellent solution for low voltage microprocessor applications.
The LMS1585A/87 are available in adjustable versions, which can set the output voltage with only two external resistors. In addition, they are also available in 1.5V and 3.3V fixed voltage versions (Note 9).The LMS1585A/87 circuits include a zener trimmed bandgap reference, current limiting and thermal shutdown.
The LMS1585A/87 series are available in TO-220 and TO-263 packages
Parametrics
Absolute Maximum Ratings (Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Maximum Input to Output Voltage(VIN to GND) 13V
Power Dissipation (Note 2) Internally Limited
Junction Temperature (TJ) (Note 2) 150℃
Storage Temperature Range -65℃to 150℃
Lead Temperature 260℃, 10 sec
ESD Tolerance (Note 3) 2000V
Features
Features
(1) Fast transient response;
(2) Available in Adjustable, 1.5V, and 3.3V versions;
(3) Current limiting and thermal protection;
(4) Commercial temp. range 0℃to 125℃;
(5) Industrial temp. range -40℃ to 125℃;
(6) Line regulation 0.005% (typical);
(7) Load regulation 0.05% (typical);
(8) Direct replacement for LT?1585A/87
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

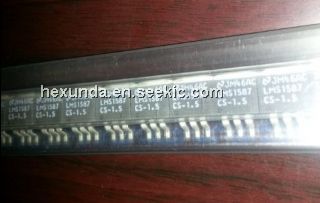

LMS1587CS-1.5 |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
|||||||||||||
LMS1587CS-1.5/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators 1.5V 3A Fast Resp LDO |
Data Sheet |
|
|
