Product Summary
The M30280FAHP#U5B single-chip control MCU incorporates the M16C/60 series CPU core, employing the high-performance silicon gate CMOS technology and sophisticated instructions for a high level of efficiency. The M30280FAHP#U5B is capable of executing instructions at high speed. Applications of the M30280FAHP#U5B include: Audio, cameras, office equipment, communication equipment, portable equipment, home appliances (in-verter solution) , motor control, industrial equipment, etc.
Parametrics
M30280FAHP#U5B absolute maximum rating: (1) Input voltage VI: -0.3V to 6.5V (VCC=ACC) ; (2) Output voltage VO: -0.3V to 6.5V (VCC=ACC) ; (3) Power Dissipation Pd: 300mW (-40°C ≤Topr≤85°C) ; (4) Operating Ambient Temperature Topr: -20 to 85°C ( during CPU operation) , 0 to 60°C ( during flash memory program and erase operation, Program Space, Block 0 to Block 5), 0 to 60°C, -20 to 85°C, -40 to 85°C ( during flash memory program and erase operation, Dats Space, Block A, Block B) .
Features
M30280FAHP#U5B features: (1) single-chip control MCUs incorporates the M16C/60 series CPU core; (2) housed in 64-pin and 80-pin plastic molded LQFP packages and also in 85-pin plastic molded TFLGA (Thin Fine Pitch Land Grid Array) package; (3) normal version, T version, and V version; (4) high level efficiency.

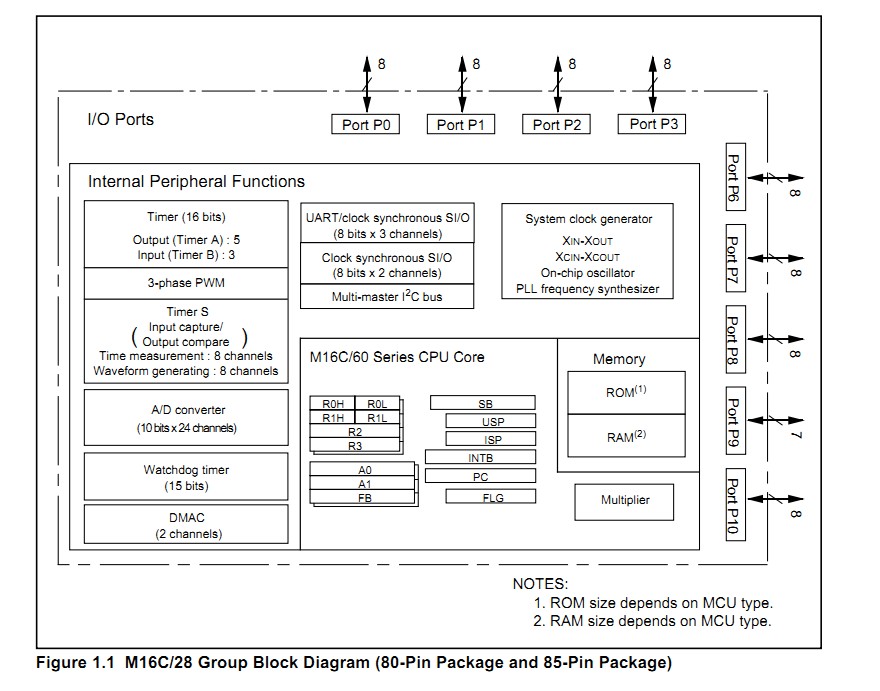

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M30280FAHP#U5B |
IC M16C/28 MCU FLASH 96K 80LQFP |
Data Sheet |
|
|
||||||||||||||||||||||||
