Product Summary

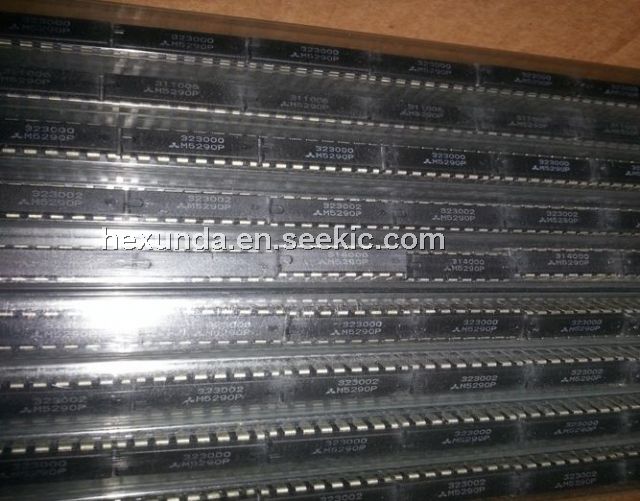

Description: M5290 is a semiconductor integrated circuit designed for voltage
regulator which is dual tracking type(positive/negative output voltage) with systerm reset circuit.
Since the output voltage is fixed inside, User can omit the outside resistors ,and this IC includes
the systerm reset circuit for detecting the abnormal status of Power Supply ,When Power Supply of systerm is
in abnormal status , this IC sends the systerm reset output(Low) to the MPU/CPU ,so User can make
the systerm operate safely .

Parametrics

Absolute Maximum retings
Vcc Supply voltage : ±20（40）V
Ilp Load curremt : ±30mA
Vdif input/output voltage difference :±15（30）V
Pd Power dissipation :1.0(P) /0.55(FP) W

Features

FEATURES
(1)High input voltage........................V1±20V;
(2)Fixed output voltage...................................V0 ± 5V;
(3)Internal systerm reset circuit(with hysteresis) detectable voltage ...................4.2V;
(4)Current limiting circuit,thermal protection circuit;
(5)Capatable of ON.OFF control (10pin);
(6)Very Low input-output voltage different operation by using transistor;
(7)Variable output voltage(with external resistors connected between terminals and GND and betweem positive output terminals)
