Product Summary

The MAX793ESE microprocessor (µP) supervisory circuits monitor and control the activities of +3.0V µPs by providing backup-battery switchover, among other features such as low-line indication, µP reset, write protection for CMOS RAM, and a watchdog. The a choice of reset threshold oltage range (denoted by suffix letter) : 3.00V to 3.15V (T) , 2.85V to 3.00V (S), and 2.55V to 2.70V (R) . Applications of the MAX793ESE include: Battery-Powered Computers and Controllers, Embedded Controllers, Intelligent Controllers, Critical µP Power Monitoring and Portable Equipment.

Parametrics

MAX793ESE absolute maximum ratings: (1) Terminal Voltage (with respect to GND) VCC : -0.3V to 6.0V; (2) VBAITT: -0.3V to 6.0V; (3) All Other Inputs: -0.3V to the higher of VCC or VBATT; (4) Continuous Input Current VCC: 200mA; (5) VBATT: 50mA; (6) GND: 20mA; (7) Output Current, Vout: 200mA, All Other Outputs : 20mA; (8) Operating Temperature Ranges: -40°C to +160°C ; (9) Storage Temperature Range: -65°C to +160°C; (10) Lead Temperature (soldering, 10sec) : +300°C.

Features

MAX793ESE features: (1) Precision Supply-Voltage Monitor:Fixed Reset Trip Voltage (MAX793/MAX795) , Adjustable Reset Trip Voltage (MAX794) ; (2)Guaranteed Reset Assertion to VCC = 1V; (3) Backup-Battery Power Switching—Battery Voltage Can Exceed VCC (4) On-Board Gating of Chip-Enable Signals—7ns Max Propagation Delay, MAX793/MAX794 Only; (5) Battery Freshness Seal; (6) Battery OK Output (MAX793) ; (7)Emitted Voltage Monitor for Power-Fail or Low-Battery Warning; (8) Independent Watchdog Timer (1.6sec timeout) ; (9) Manual Reset Input.

Diagrams

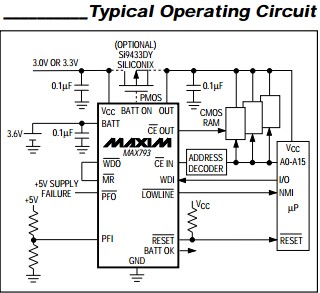

MAX793ESE Circuit
