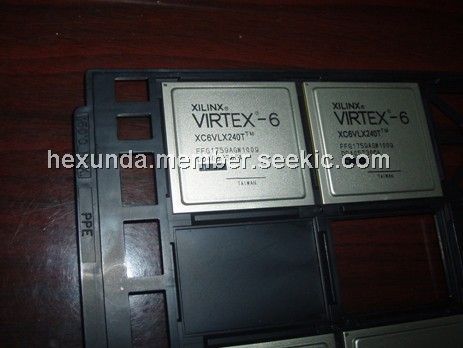

XC6VLX240T-1FFG1759I

Product Summary

The Virtex-6 family provides the newest, most advanced features in the FPGA market. Virtex-6 FPGAs are the programmable silicon foundation for Targeted Design Platforms that deliver integrated software and hardware components to enable designers to focus on innovation as soon as their development cycle begins. Using the third-generation ASMBL(Advanced Silicon Modular Block) columnbased architecture, the Virtex-6 family contains multiple distinct sub-families. This overview covers the devices in the LXT, SXT, and HXT sub-families. Each sub-family contains a different ratio of features to most efficiently address the needs of a wide variety of advanced logic designs. In addition to the high performancelogic fabric, Virtex-6 FPGAs contain many built-in system-level blocks. These features allow logic designers to build the highest levels of performance and functionality into their FPGA-based systems. Built on a 40 nm state-of-theart copper process technology, Virtex-6 FPGAs are a programmable alternative to custom ASIC technology. Virtex-6 FPGAs offer the best solution for addressing the needs of high-performance logic designers, high-performance DSP designers, and high-performance embedded systems designers with unprecedented logic, DSP, connectivity, and soft microprocessor capabilities.

Features

1.Dedicated cascade connections
2.Flexible configuration options
3.SPI and Parallel Flash interface
4.Multi-bitstream support with dedicated fallback reconfiguration logic
5.Automatic bus width detection
6.System Monitor capability on all devices
7.On-chip/off-chip thermal and supply voltage monitoring
8.JTAG access to all monitored quantities
9.Integrated interface blocks for PCI Express designs
10.Compliant to the PCI Express Base Specification 2.0
11.Gen1 (2.5 Gb/s) and Gen2 (5 Gb/s) support with GTX transceivers
12.Endpoint and Root Port capable
13.x1, x2, x4, or x8 lane support per block
14.GTX transceivers: up to 6.6 Gb/s
15.Data rates below 480 Mb/s supported by oversampling in FPGA logic.
16.GTH transceivers: 2.488 Gb/s to beyond 11 Gb/s
17.Integrated 10/100/1000 Mb/s Ethernet MAC block
18.Supports 1000BASE-X PCS/PMA and SGMII using GTX transceivers
19.Supports MII, GMII, and RGMII using SelectIO technology resources
20.2500Mb/s support available
21.40 nm copper CMOS process technology
22.1.0V core voltage (-1, -2, -3 speed grades only)
23.Lower-power 0.9V core voltage option (-1L speed grade only)
24.High signal-integrity flip-chip packaging available in standard or Pb-free package option.
