Product Summary
The MM74HC4066MX is digitally controlled analog switches utilizing advanced silicon-gate CMOS technology. The MM74HC4066MX haslow ON resistance and low OFF leakages. The MM74HC4066MX is bidirectional switche, thus any analog input may be used as an output and visa-versa. Also the MM74HC4066MX switche contains linearization circuitry which lowers the ON resistance and increases switch linearity. The MM74HC4066MX allows control of up to 12V (peak) analog signals with digital control signals of the same range.
Parametrics
MM74HC4066MX absolute maximum ratings: Supply Voltage (VCC) : -0.5 to +15V; (2) DC Control Input Voltage (VIN) : -1.5 to VCC +1.5V; (3) DC Switch I/O Voltage (VIO) : VEE-0.5 to VCC +0.5V; (4) Clamp Diode Current (IIK, IOK) : ±20 mA; (5) DC Output Current, per pin (IOUT) : ±25 mA; (6) DC VCC or GND Current, per pin (ICC) : ±50 mA; (7) Storage Temperature Range (TSTG) : -65°C to +150°C; (8) Power Dissipation (PD) (Note 3) : 600mW; (8) S.O. Package only: 500 mW; (9) Lead Temperature (TL)(Soldering 10 seconds) : 260°C.
Features
MM74HC4066MX features: (1) Typical switch enable time: 15 ns; (2) Wide analog input voltage range: 0–12V; (3) Low ON resistance: 30 typ. (MM74HC4066) ; (4) Low quiescent current: 80 μA maximum (74HC) ; (5) Matched switch characteristics; (6) Individual switch controls.

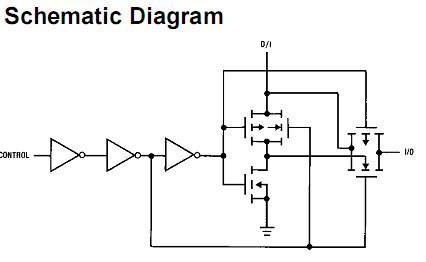

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
MM74HC4066MX |
Fairchild Semiconductor |
Analog Switch ICs Quad Analog Switch |
Data Sheet |
Negotiable |
|
|||||
