Product Summary
Applications
? Load Switch
? Notebook PC
? Desktop PC
Parametrics
MAXIMUM RATINGS (TJ= 25°C unless otherwise noted)
Drain-to-Source Voltage VDSS 30 V
Gate-to-Source Voltage VGS ±20 V
Pulsed Drain Current tp = 10 s IDM 21A
Single Pulse Drain-to-Source Avalanche Energy(VDD = 30 V, IL = 10.4 A, VGS = 10 V, L = 1.0 mH, RG = 25 Ω)EAS 54 mJ
Lead Temperature for Soldering Purposes (1/8″ from case for 10 s) TL 260℃
Features
Features
(1) Low RDS(on);
(2) Low Gate Charge;
(3) Pb-Free Package is Available
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

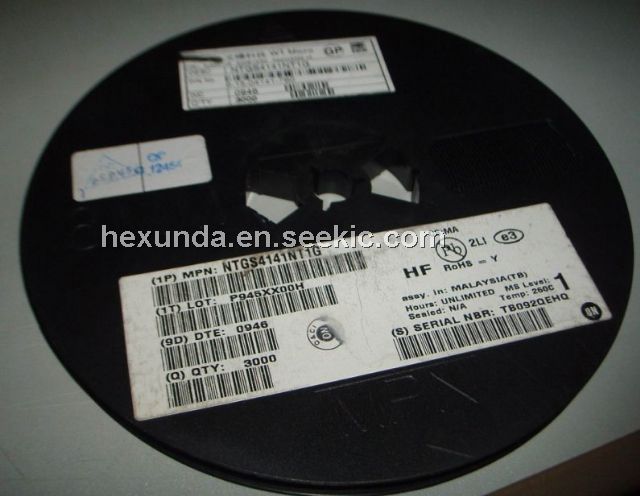

 NTGS4141NT1G |
ON Semiconductor |
MOSFET 30V 7A N-Channel |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
NTGS1135PT1G |
ON Semiconductor |
MOSFET 8V Power Mosfet P-Channel |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTGS3130NT1G |
ON Semiconductor |
MOSFET POWER MOSFET 20V 5.6A SNGL CH |
Data Sheet |
|
|
||||||||||||
|
NTGS3136PT1G |
ON Semiconductor |
MOSFET PFET TSOP6 20V/8V TR |
Data Sheet |
|
|
||||||||||||
 |
NTGS3433T1 |
ON Semiconductor |
MOSFET -12V -3.3A P-Channel |
Data Sheet |
Negotiable |
|
||||||||||||
|
NTGS3433T1G |
ON Semiconductor |
MOSFET -12V -3.3A P-Channel |
Data Sheet |
|
|
||||||||||||
|
NTGS3441BT1G |
ON Semiconductor |
MOSFET -20V -3.5A SGL P-CHN TSOP-6 |
Data Sheet |
|
|
||||||||||||
