Product Summary

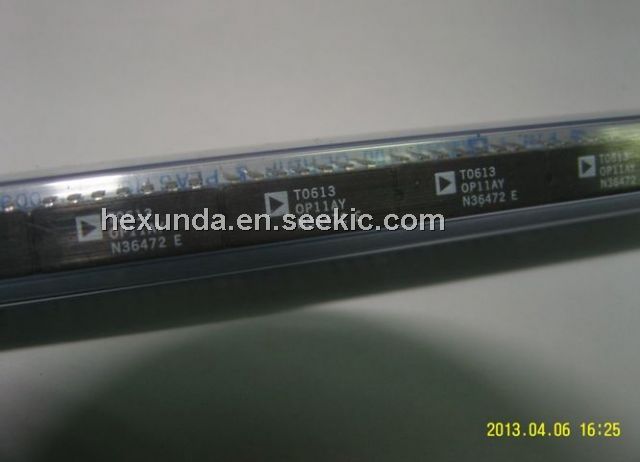

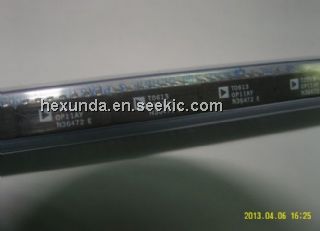

GENERAL DESCRIPTION:The OP11 provides four matched 741-type operational amplifiers in a single 14-lead DIP package. The OP11 is pin compatible
with the LM148, LM348, RM4156, RM4158, and HA4741 amplifiers. The amplifier is matched for common-mode rejection
ratio and offset voltage which is very important in designing instrumentation amplifiers. In addition, the amplifier is designed
to have equal positive-going and negative-going slew rates. This is an important consideration for good audio system performance.
The OP11 is ideal for use in designs requiring minimum space and cost while maintaining performance

Parametrics

ABSOLUTE MAXIMUM RATINGS*
Supply Voltage (VS)   . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±22 V
Input Voltage* . . . . . . . . . . . . . . . . . . . . . . . . . Supply Voltage
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . ±30 V
Output Short-Circuit Duration . . . . . . . . . . . . . . . Continuous(One Amp Only)
Storage Temperature Range
Y Package . . . . . . . . . . . . . . . . . . . . . . . . –65℃ to +150℃
P Package . . . . . . . . . . . . . . . . . . . . . . . . . –65℃ to +125℃
Lead Temperature Range (Soldering, 60 sec) . . . . . . . . 300℃
Operating Temperature Range
OP11A . . . . . . . . . . . . . . . . . . . . . . . . . . . –55℃ to +125℃
OP11E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0℃ to 70℃
OP11F, OP11G . . . . . . . . . . . . . . . . . . . . . –40℃to +85℃

Features

FEATURES
(1)Guaranteed VOS: 500  V Max;
(2)Guaranteed Matched CMRR: 94 dB Min;
(3)Guaranteed Matched VOS: 750  V Max;
(4)LM148/LM348 Direct Replacement;
(5)Low Noise;
(6)Silicon-Nitride Passivation;
(7)Internal Frequency Compensation;
(8)Low Crossover Distortion;
(9)Continuous Short-Circuit Protection;
(10)Low Input Bias Current
